SNGX 110416SR-M:M8340
SNGX 110416SR-M:M8340

SNGX 110416SR-M:M8340

UGC DOR7799790
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.11 CAD - $31.11 CAD
$31.11 CAD
$31.11 CAD - $31.11 CAD
$31.11 CAD

Vendu en lots de : 10

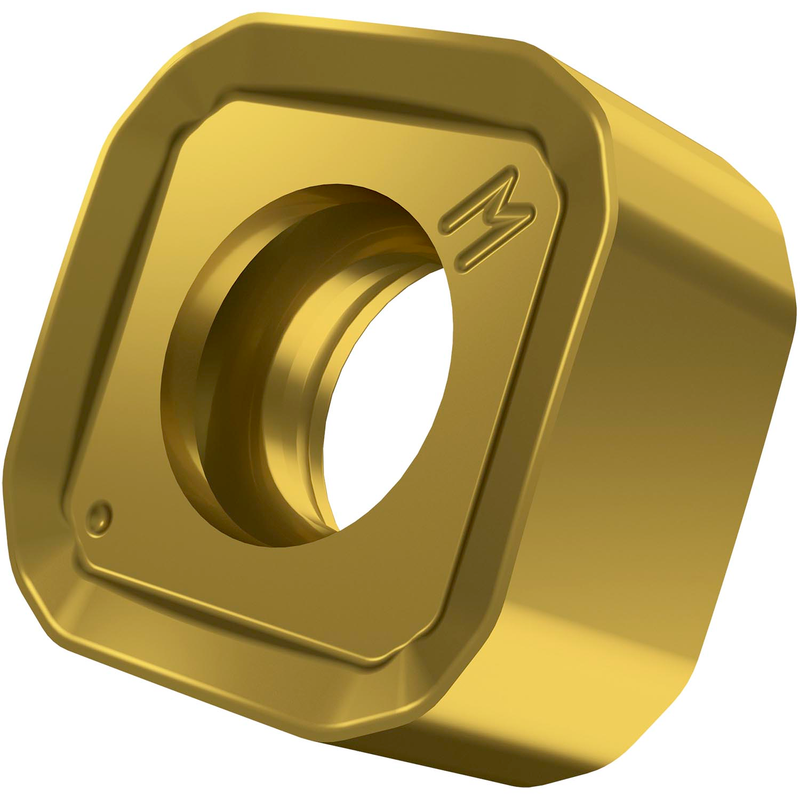

Plaquette de fraisage double face SNGX 1104, carrée pour une profondeur de coupe maximale de 1,7 mm, avec un rayon de coin de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO G et une géométrie M avec des arêtes de coupe et facettes arrondies, en carbure WC-Co à grains fins revêtu PVD M8340 de nuance ISO P25 -P50 pour l'usinage de l'acier avec des fraises à avance élevée SSN11

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNGX 110416SR-M:M8340
GradeM8340
Chipbreaker (CBMD)M
Product Number7799790
Product FamilySNGX 11

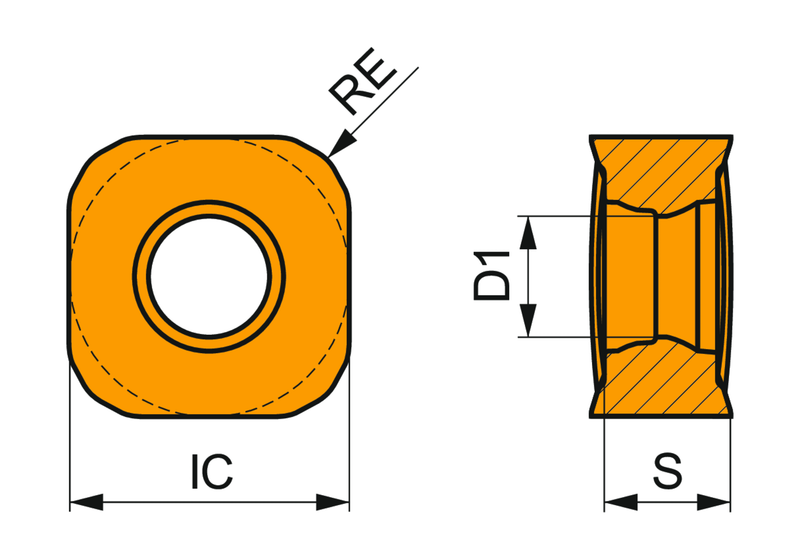

Insert Geometry
Insert DesignSNGX 11
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.417"
Inscribed Circle Dia. — mm (IC)10.6 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7799790
EAN3603603672789
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
SNGX 110416SR-M:M8340 — Line Drawing PDF Download
