SNGX 110416SR-M:M9340
SNGX 110416SR-M:M9340

SNGX 110416SR-M:M9340

UGC DOR7799792
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.11 CAD - $31.11 CAD
$31.11 CAD
$31.11 CAD - $31.11 CAD
$31.11 CAD

Vendu en lots de : 10

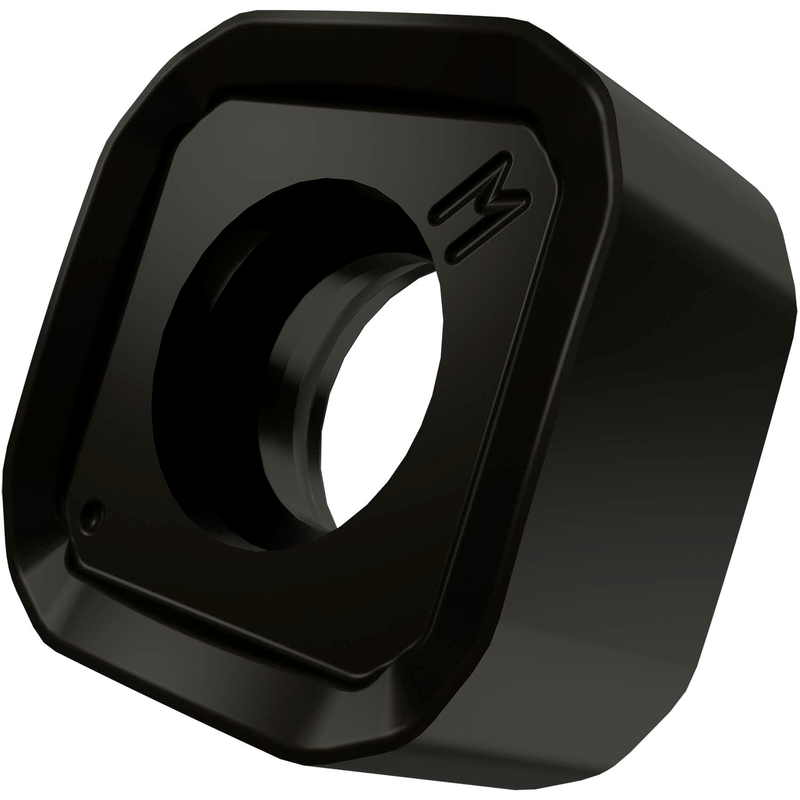

Plaquette de fraisage double face SNGX 1104, carrée pour une profondeur de coupe maximale de 1,7 mm, avec un rayon de bec de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO G et une géométrie M avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu M9340 MT-CVD dans la plage de nuances ISO P35-P50 pour l'usinage de l'acier avec des fraises à avance élevée SSN11

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNGX 110416SR-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number7799792
Product FamilySNGX 11

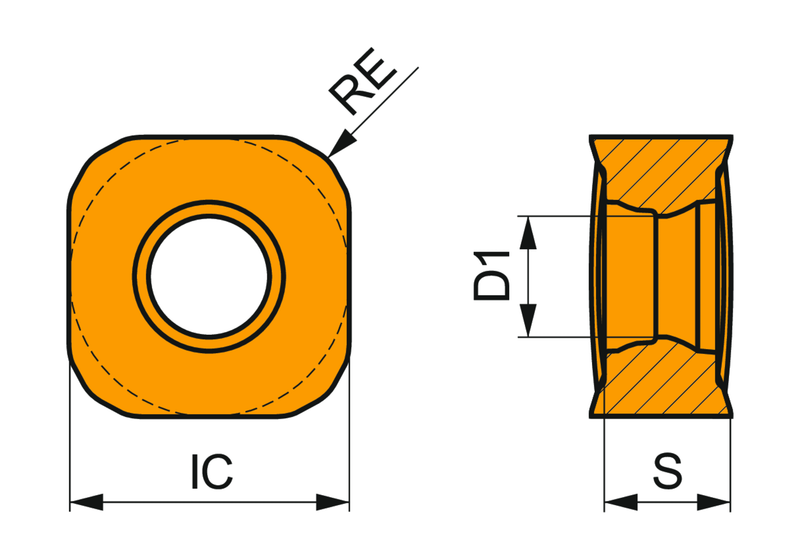

Insert Geometry
Insert DesignSNGX 11
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.417"
Inscribed Circle Dia. — mm (IC)10.6 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7799792
EAN3603603672802
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
SNGX 110416SR-M:M9340 — Line Drawing PDF Download
