TN 16ER150M-AL:HF7
TN 16ER150M-AL:HF7

TN 16ER150M-AL:HF7

UGC DOR7800248
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.24 CAD - $25.24 CAD
$25.24 CAD
$25.24 CAD - $25.24 CAD
$25.24 CAD

Vendu en lots de : 5

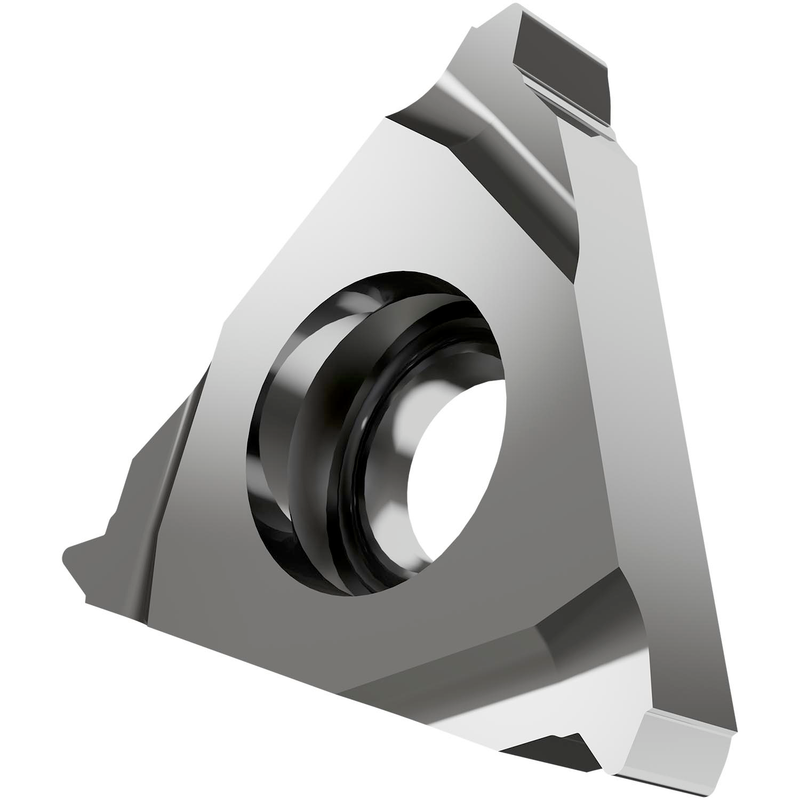

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 9,525 mm, pour le filetage extérieur métrique ISO à droite avec un pas de 1,5 mm, en carbure WC-Co à grain fin non revêtu HF7 dans la gamme de qualité ISO N10-N25 pour l'usinage de métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16ER150M-AL:HF7
GradeHF7
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number7800248
Product FamilyTN M EXT

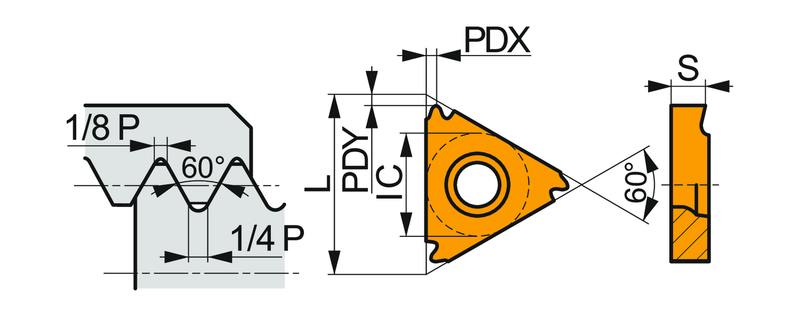

Insert Geometry
Insert DesignTN M EXT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7800248
EAN3603603671508
File Type Download
TN 16ER150M-AL:HF7 — Line Drawing PDF Download
