TN 16ER190BSPT:T8030
TN 16ER190BSPT:T8030

TN 16ER190BSPT:T8030

UGC DOR7800309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.76 CAD - $34.76 CAD
$34.76 CAD
$34.76 CAD - $34.76 CAD
$34.76 CAD

Vendu en lots de : 5

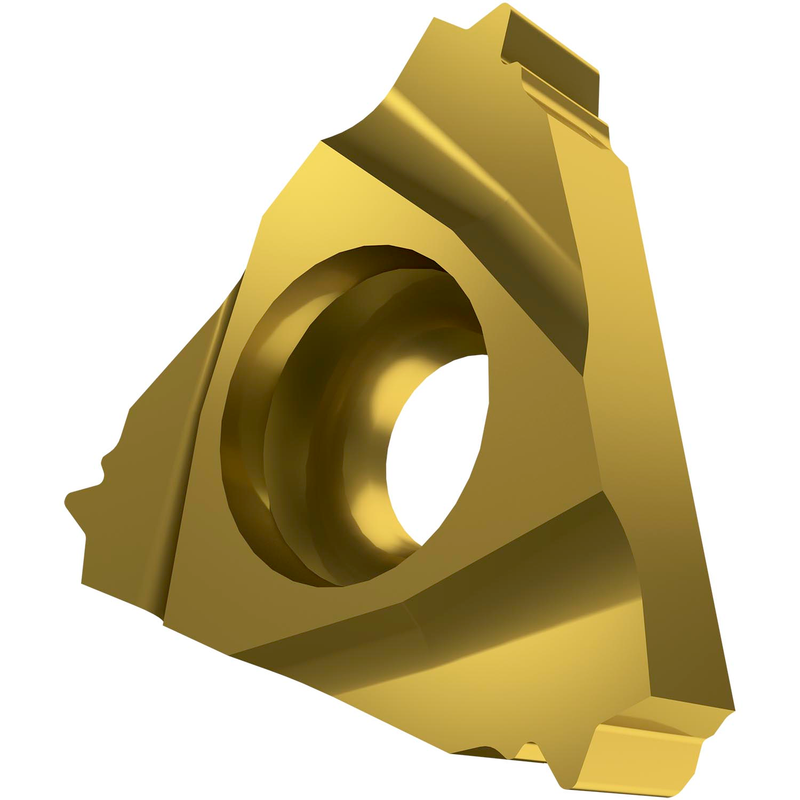

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 9,525 mm, pour le filetage extérieur à droite BSPT de 19 filets par pouce, en carbure WC-Co à grain fin revêtu PVD T8030 dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16ER190BSPT:T8030
GradeT8030
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7800309
Product FamilyTN BSPT EXT

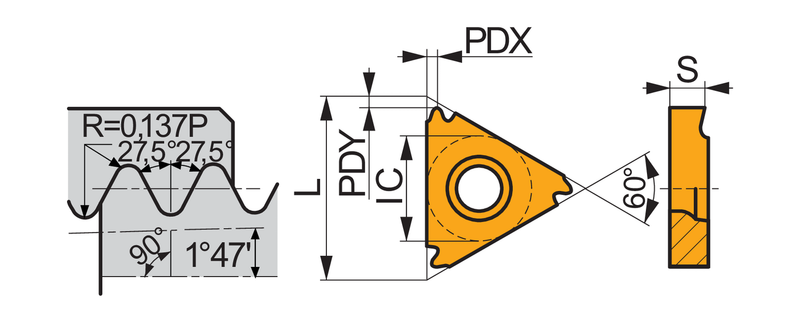

Insert Geometry
Insert DesignTN BSPT EXT
Insert Shape Code (SC)T - angle d'ouverture de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Threads per Inch (TPI)19.0
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7800309
EAN3603603674110
File Type Download
TN 16ER190BSPT:T8030 — Line Drawing PDF Download
