150A04R-ISMOSN11-C
150A04R-ISMOSN11-C
150A04R-ISMOSN11-C

150A04R-ISMOSN11-C

UGC DOR7800651
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$649.00 CAD - $649.00 CAD
$649.00 CAD
$649.00 CAD - $649.00 CAD
$649.00 CAD

Vendu en lots de : 1

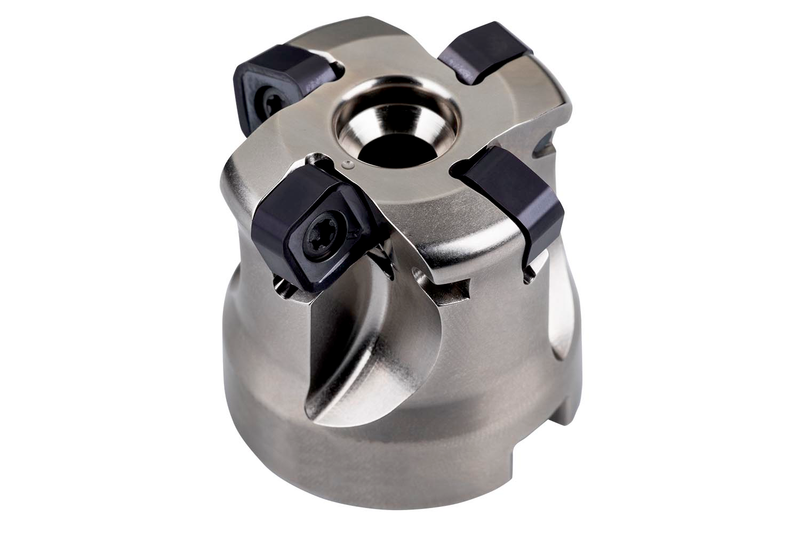

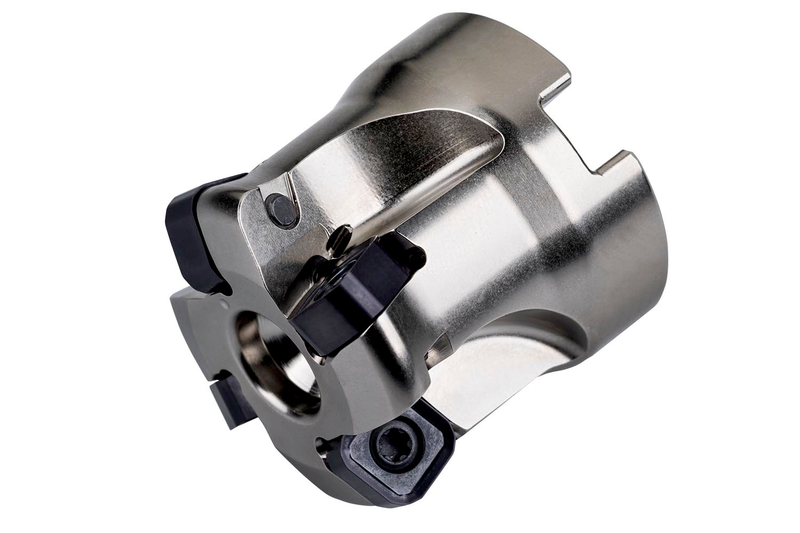

Fraise à avance rapide à double géométrie négative qui utilise 4 plaquettes SNGX 1104... double-face, diamètre de coupe de 1,500" avec un angle d'attaque de 18° et un alésage de raccordement de 0,500" selon DIN 8030-C, une longueur de dépassement de 1,575", arrosage interne et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage hélicoïdal, le fraisage en rampes, le fraisage en bout et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,067"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A04R-ISMOSN11-C
Product Number7800651
Product FamilyISSN11

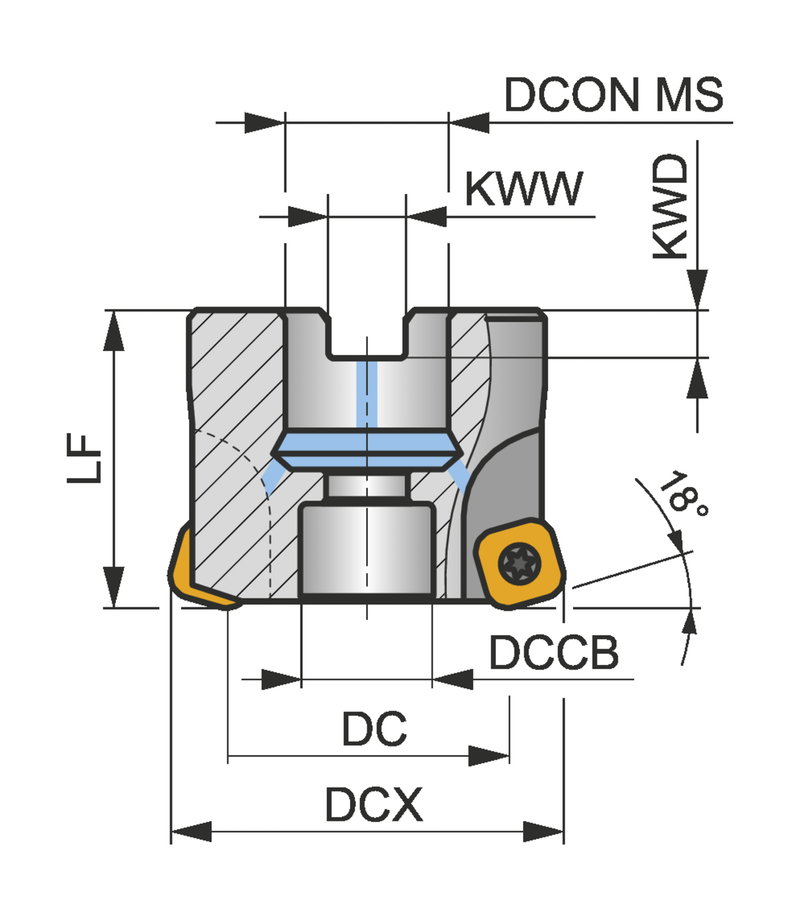

Dimensions
Cutting Diameter — in (DC)0.957"
Cutting Diameter — mm (DC)24.3 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSN11
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7800651
EAN3603603675018
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
150A04R-ISMOSN11-C — 3D Model STP Download
150A04R-ISMOSN11-C — 2D Model DXF Download
150A04R-ISMOSN11-C — Line Drawing PDF Download
