GL2-D200G02R12-PM:G8330
GL2-D200G02R12-PM:G8330

GL2-D200G02R12-PM:G8330

UGC DOR7802885
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.66 CAD - $33.66 CAD
$33.66 CAD
$33.66 CAD - $33.66 CAD
$33.66 CAD

Vendu en lots de : 10

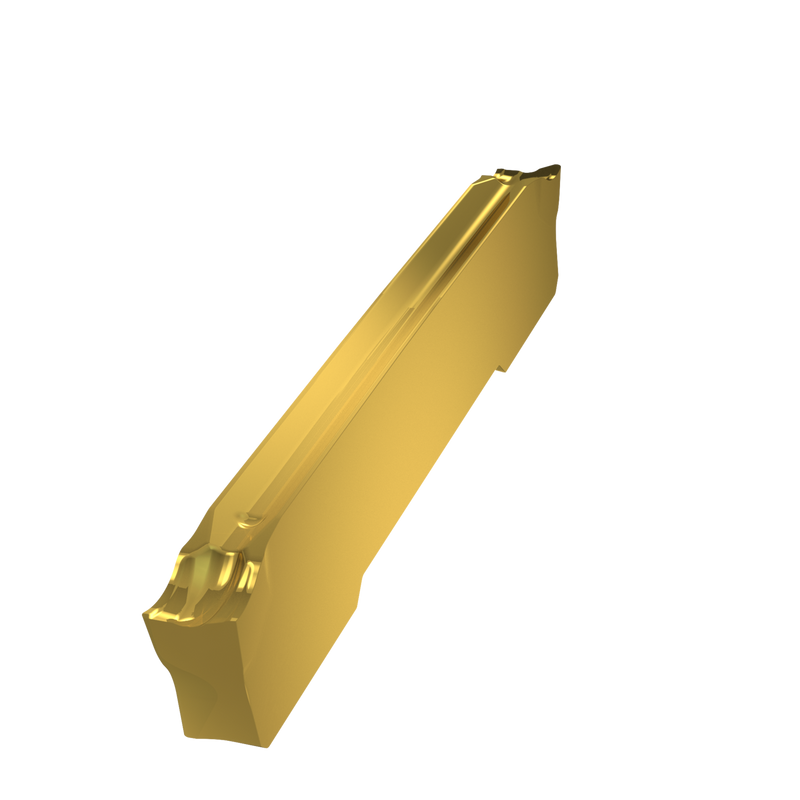

Gorge et tronçonnage double coupe, longueur de 25 mm, largeur de coupe de 2 mm et rayons de coin de 0,2 mm, 12°. Nuance carbure WC-Co à grains fins revêtu PVD G8330 dans les plages de nuances ISO P25 -P40 et M20 -M35 pour l'usinage de l'acier et de l'acier inoxydable. Géométrie PM à angle de coupe très positif, premier choix pour le tronçonnage, et coupes continues à légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-D200G02R12-PM:G8330
GradeG8330
Chipbreaker (CBMD)MP
Product Number7802885
Product FamilyGL. J - PM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7802885
EAN3603603675353
File Type Download

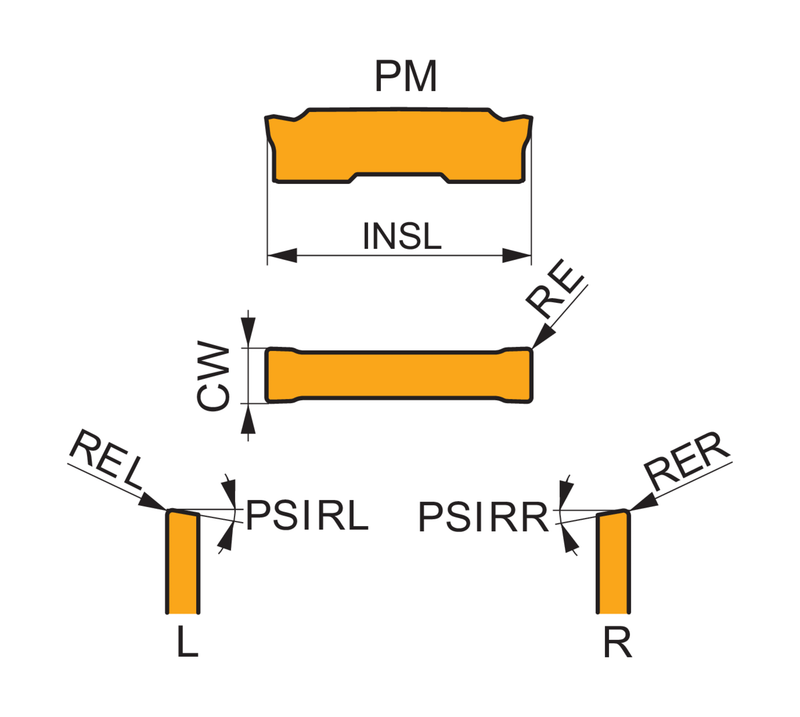

GL2-D200G02R12-PM:G8330 — Line Drawing PDF Download
