GL3-D300G02R12-PR:G8330
GL3-D300G02R12-PR:G8330

GL3-D300G02R12-PR:G8330

UGC DOR7802930
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.19 CAD - $37.19 CAD
$37.19 CAD
$37.19 CAD - $37.19 CAD
$37.19 CAD

Vendu en lots de : 10

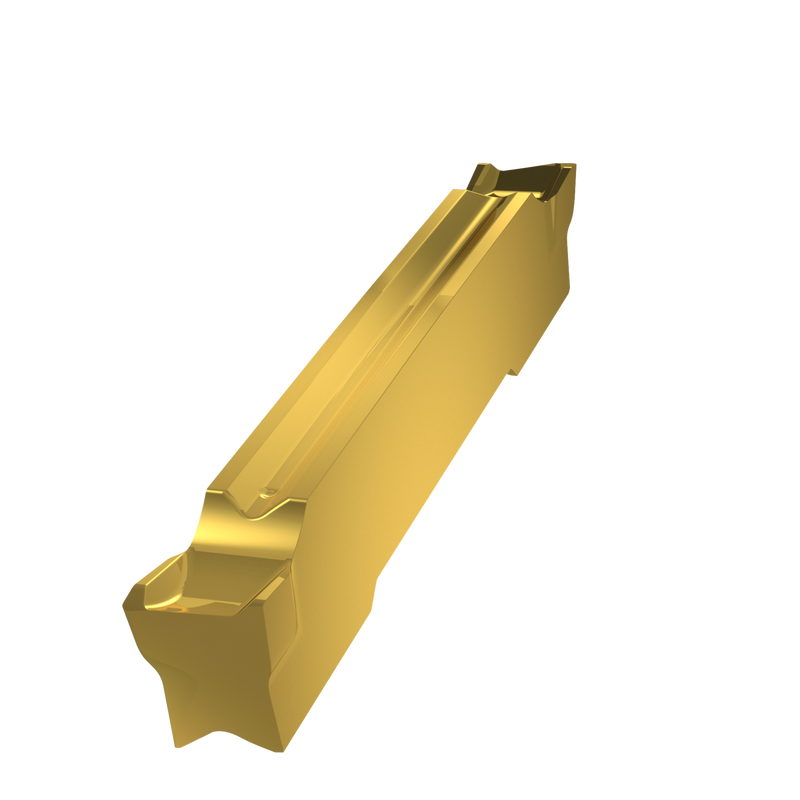

Plaquette de tronçonnage et de gorge double face, longueur 25 mm, largeur de coupe 3 mm et rayons d'angle 0,2 mm, 12°. Nuance carbure G8330 WC-Co à grains fins revêtu PVD dans les plages de nuances ISO P25-P40 et K20-K40 pour l'usinage de l'acier et de la fonte. Géométrie PR avec une bande de renfort négative, premier choix pour le tronçonnage et la réalisation de gorges difficiles, et pour les coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-D300G02R12-PR:G8330
GradeG8330
Chipbreaker (CBMD)RP
Product Number7802930
Product FamilyGL. D - PR
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7802930
EAN3603603675605
File Type Download

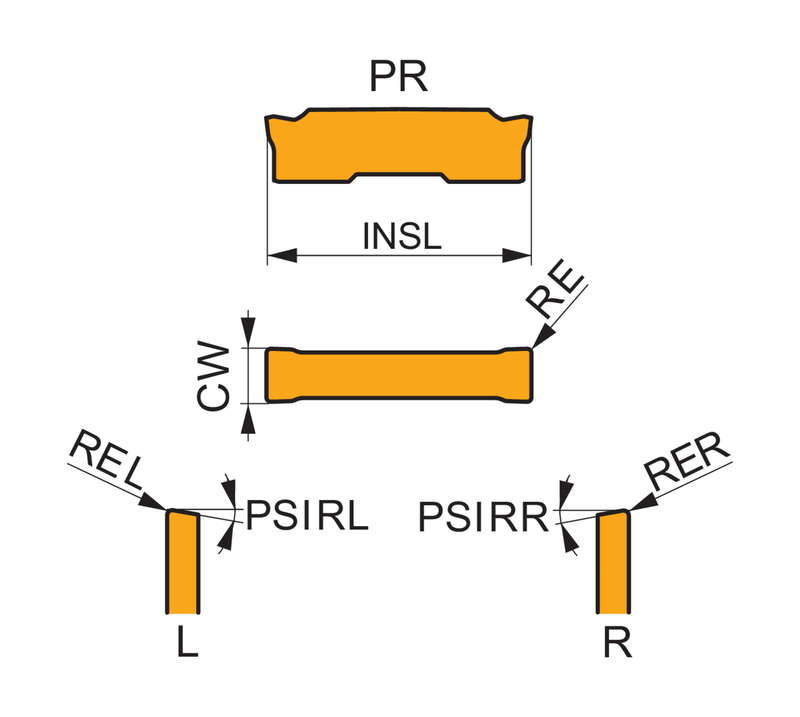

GL3-D300G02R12-PR:G8330 — Line Drawing PDF Download
