GL5-D500M03-PM:G8330
GL5-D500M03-PM:G8330

GL5-D500M03-PM:G8330

UGC DOR7802945
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.70 CAD - $41.70 CAD
$41.70 CAD
$41.70 CAD - $41.70 CAD
$41.70 CAD

Vendu en lots de : 10

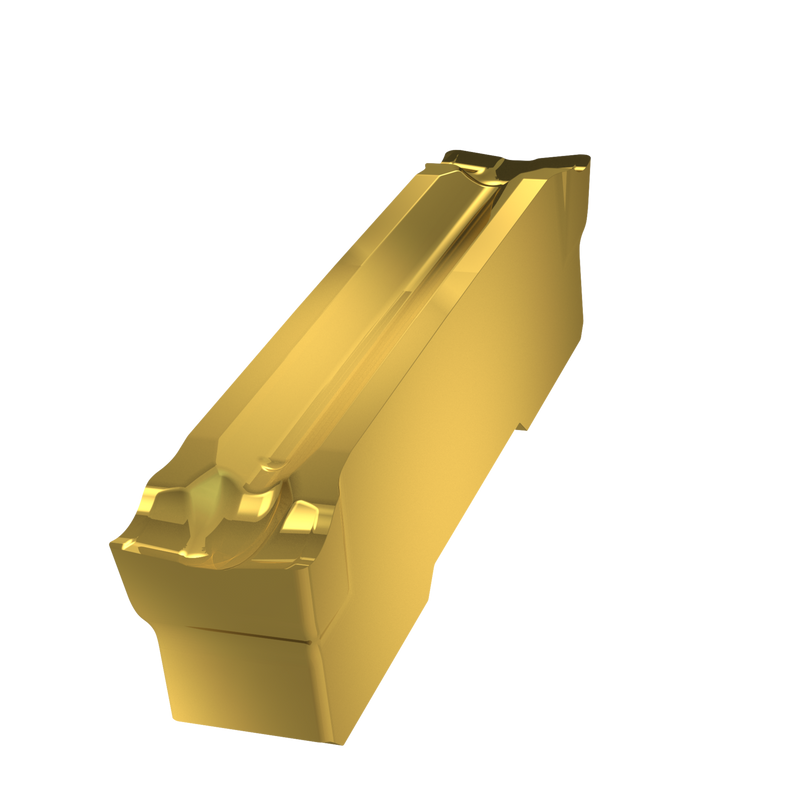

Plaquette à tronçonner et à gorge double, 25 mm de long, 5 mm de largeur de coupe et 0,3 mm de rayons de coin. Nuance carbure WC-Co à grain fin revêtu PVD G8330 dans les plages ISO P25 -P40 et M20 -M35 pour l'usinage de l'acier et de l'acier inoxydable. Géométrie PM avec angle de coupe très positif, premier choix pour le tronçonnage et les coupes continues à légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-D500M03-PM:G8330
GradeG8330
Chipbreaker (CBMD)MP
Product Number7802945
Product FamilyGL. D - PM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.012"
Corner Radius — mm (RE)0.3 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7802945
EAN3603603675759
File Type Download

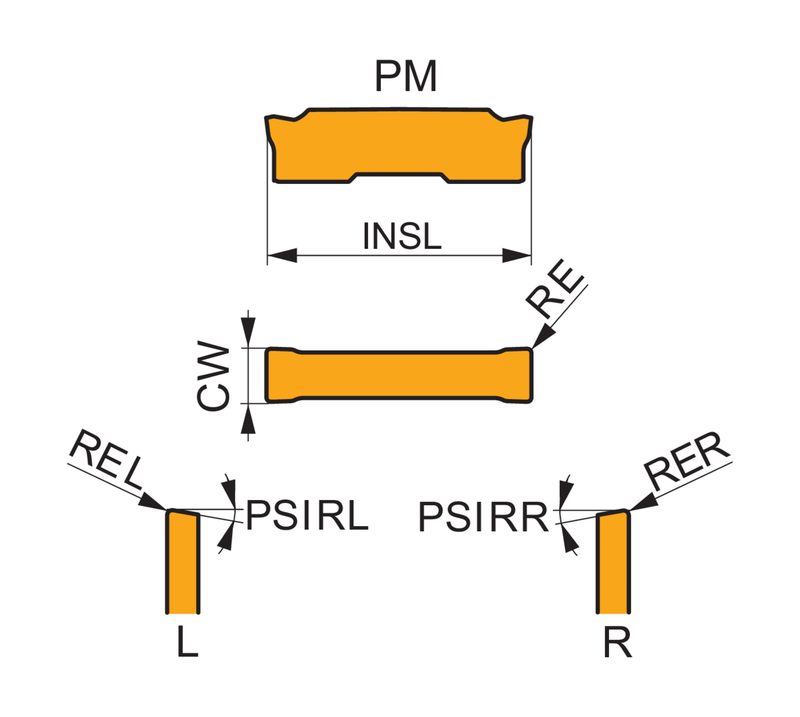

GL5-D500M03-PM:G8330 — Line Drawing PDF Download
