GL6-D600M03-PM:G8330
GL6-D600M03-PM:G8330

GL6-D600M03-PM:G8330

UGC DOR7802947
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.79 CAD - $43.79 CAD
$43.79 CAD
$43.79 CAD - $43.79 CAD
$43.79 CAD

Vendu en lots de : 10

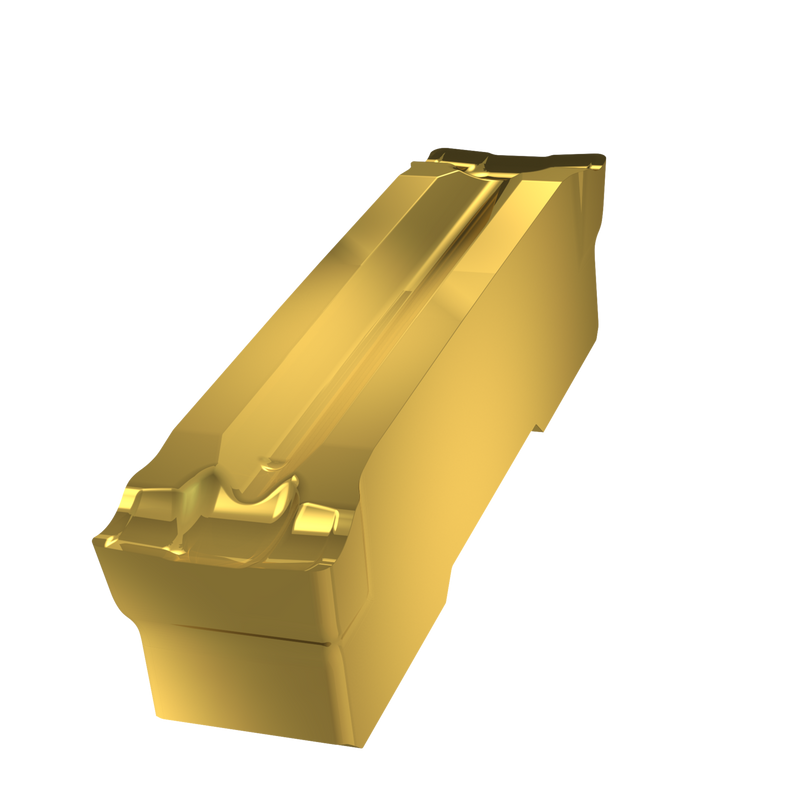

Plaquette de tronçonnage et de rainurage double face, longueur de 25 mm, largeur de coupe de 6 mm et rayons de coin de 0,3 mm. Carbure WC-Co à grains fins revêtu PVD nuance G8330 dans les plages de nuances ISO P25 - P40 et M20 - M35 pour l'usinage de l'acier et de l'acier inoxydable. Géométrie PM à angle d'attaque très positif, premier choix pour le tronçonnage et les coupes continues à légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-D600M03-PM:G8330
GradeG8330
Chipbreaker (CBMD)MP
Product Number7802947
Product FamilyGL. D - PM
Insert Geometry
Insert DesignGL. J
Corner Radius — in (RE)0.012"
Corner Radius — mm (RE)0.3 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number7802947
EAN3603603675773
File Type Download

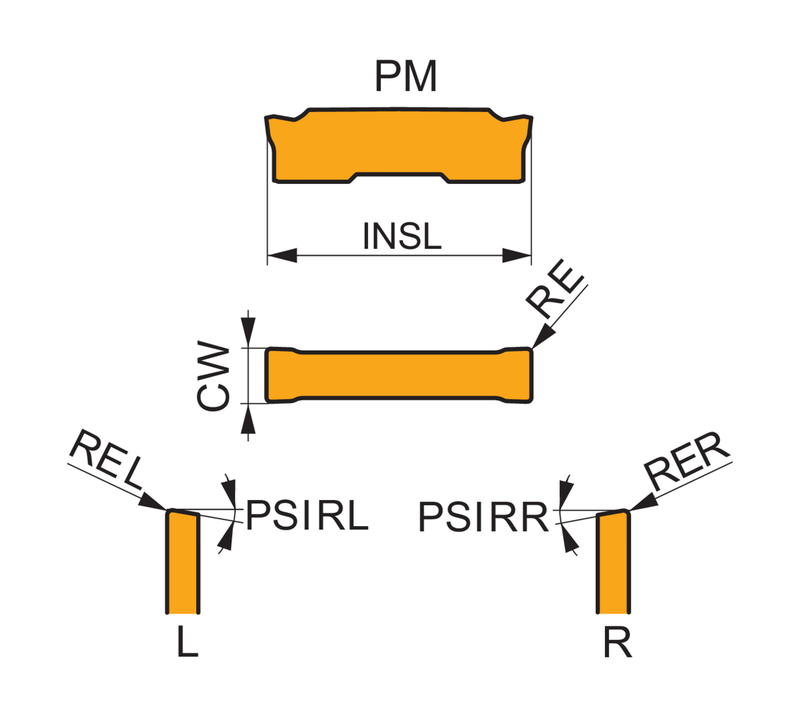

GL6-D600M03-PM:G8330 — Line Drawing PDF Download
