GL2-S1616KFL-16-45
GL2-S1616KFL-16-45
GL2-S1616KFL-16-45

GL2-S1616KFL-16-45

UGC DOR7803124
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

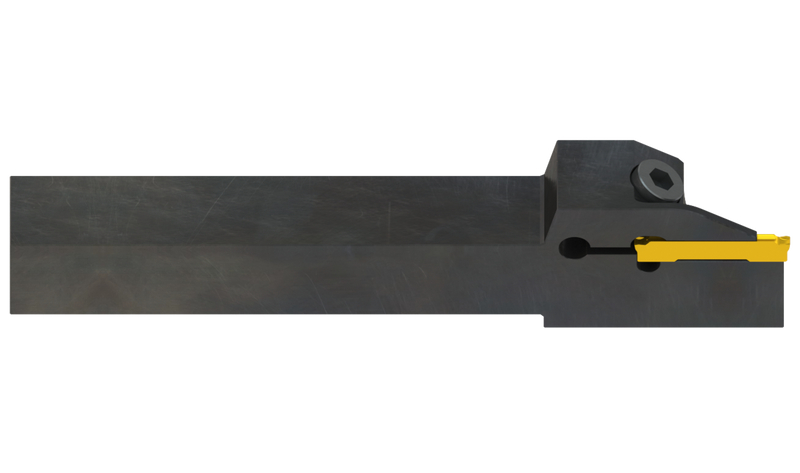

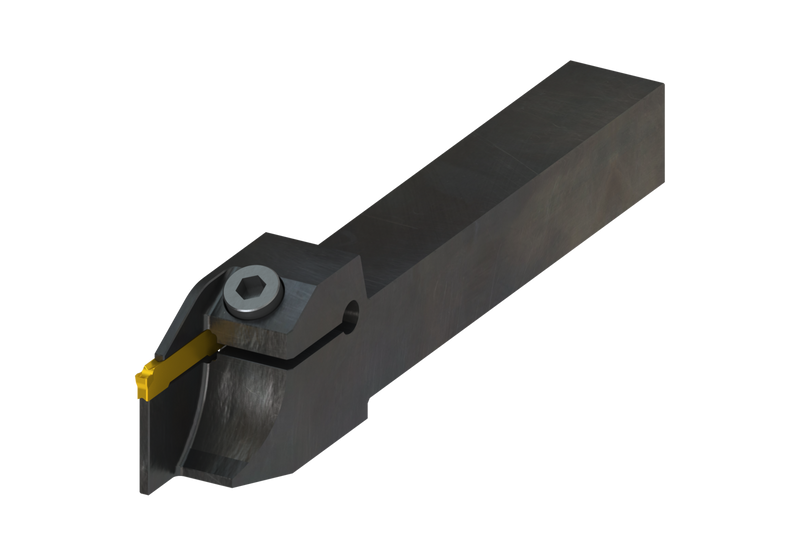

Outil de rainurage à bride supérieure pour plaquette double face de 25 mm de long avec largeur de coupe de 2-2,5 mm (désignation GL2-D…), à gauche avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 45 mm, hauteur de queue 16 mm, largeur 16 mm et longueur d'outil 125 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le rainurage radial, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S1616KFL-16-45
Product Number7803124
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"

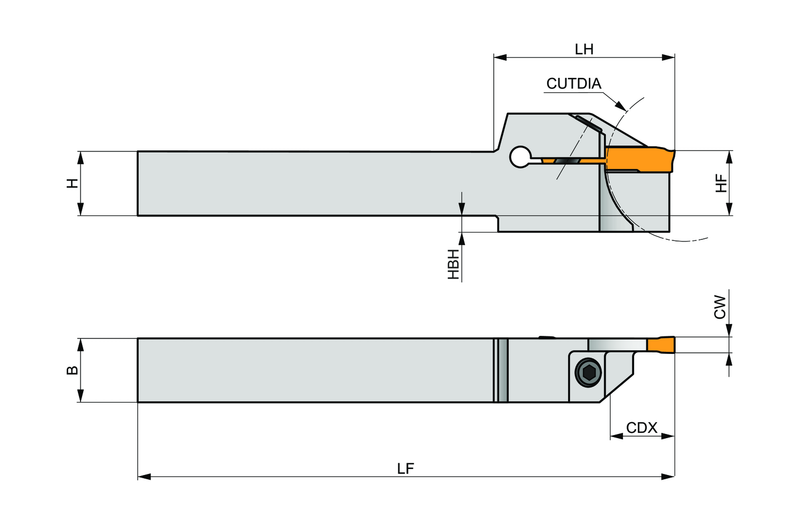

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number7803124
EAN3603603675797
File Type Download
GL2-S1616KFL-16-45 — 3D Model STP Download
GL2-S1616KFL-16-45 — Line Drawing PDF Download
