GL2-S2525MFR-20-80
GL2-S2525MFR-20-80
GL2-S2525MFR-20-80

GL2-S2525MFR-20-80

UGC DOR7803129
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

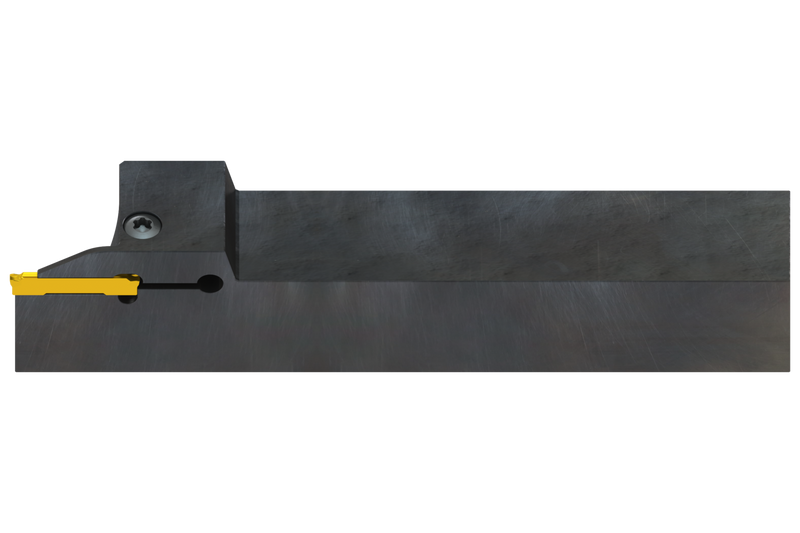

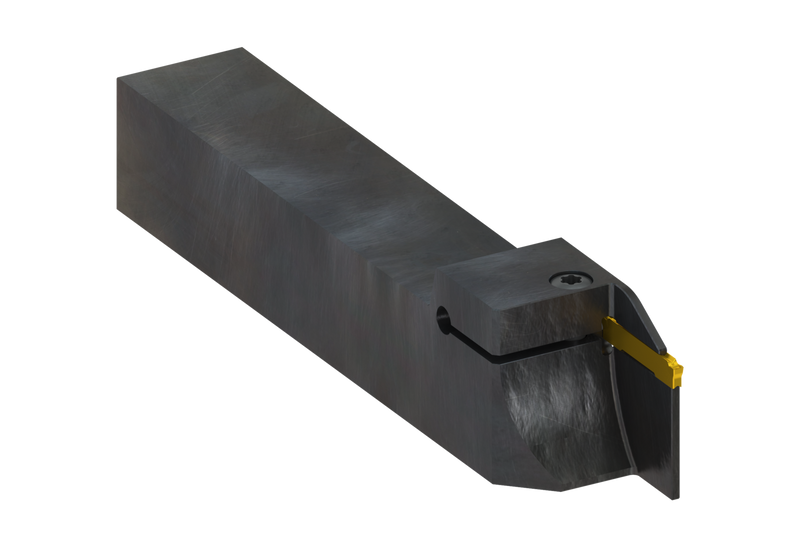

Outil de gorge à bride supérieure pour un insert à double extrémité de 25 mm de long avec une largeur de coupe de 2 à 2,5 mm (désignation GL2-D…), droitier avec insert parallèle à la tige pour un diamètre de tronçonnage maximal de 80 mm, hauteur de tige 25 mm, largeur 25 mm et longueur d'outil 150 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S2525MFR-20-80
Product Number7803129
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803129
EAN3603603675841
File Type Download
GL2-S2525MFR-20-80 — 3D Model STP Download
GL2-S2525MFR-20-80 — Line Drawing PDF Download
