GL3-S1616KFR-16-45
GL3-S1616KFR-16-45
GL3-S1616KFR-16-45

GL3-S1616KFR-16-45

UGC DOR7803233
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

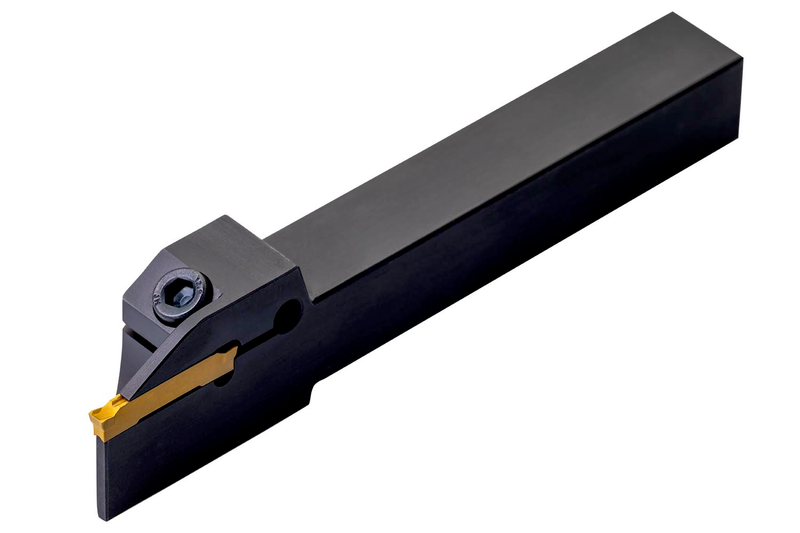

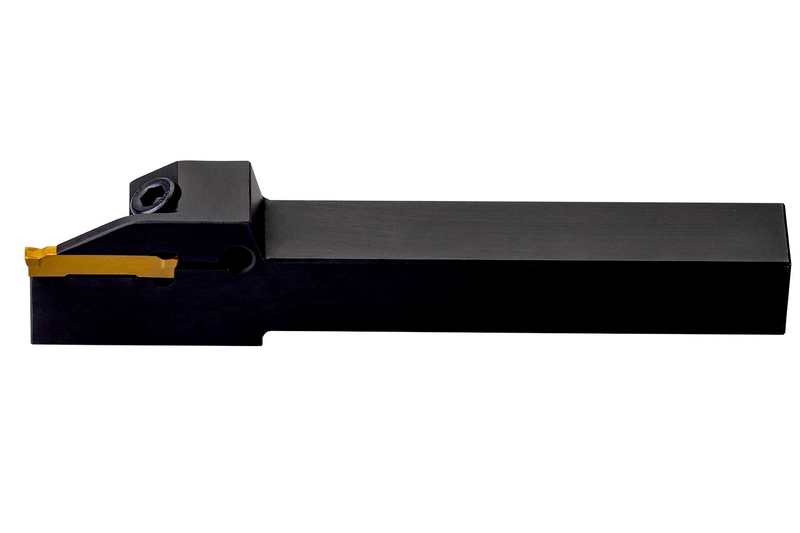

Outil de gorge à bridage supérieur pour une plaquette double extrémité de 25 mm de long et 3 mm de largeur de coupe (désignation GL3-D…), à droite avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximum de 45 mm, hauteur de la queue 16 mm, largeur 16 mm et longueur de l'outil 125 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S1616KFR-16-45
Product Number7803233
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"

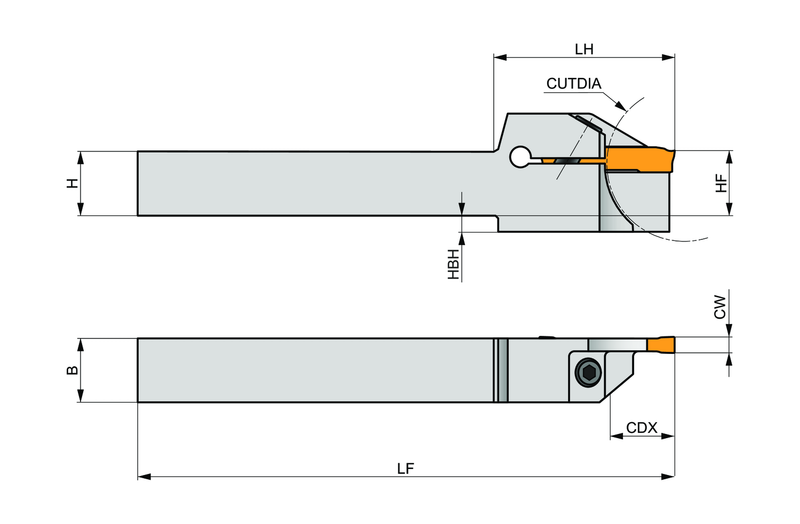

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.63 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803233
EAN3603603675889
File Type Download
GL3-S1616KFR-16-45 — 3D Model STP Download
GL3-S1616KFR-16-45 — Line Drawing PDF Download
