GL3-S2020KFR-20-80
GL3-S2020KFR-20-80
GL3-S2020KFR-20-80

GL3-S2020KFR-20-80

UGC DOR7803235
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

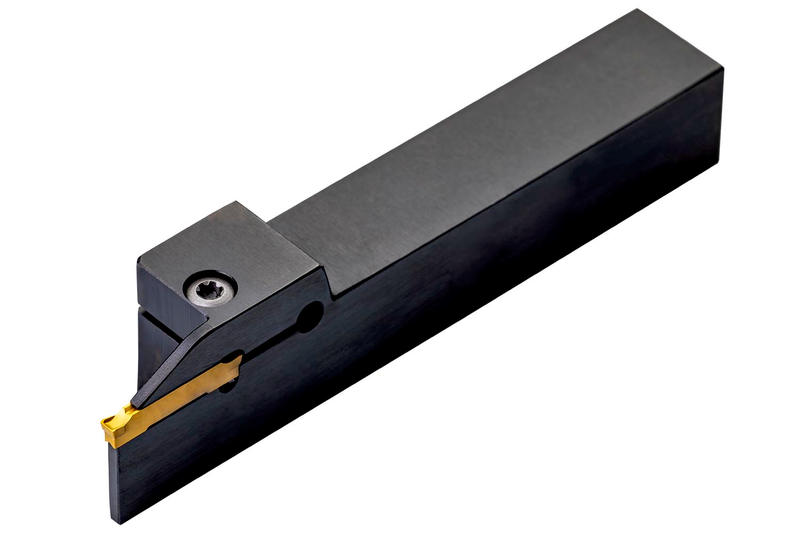

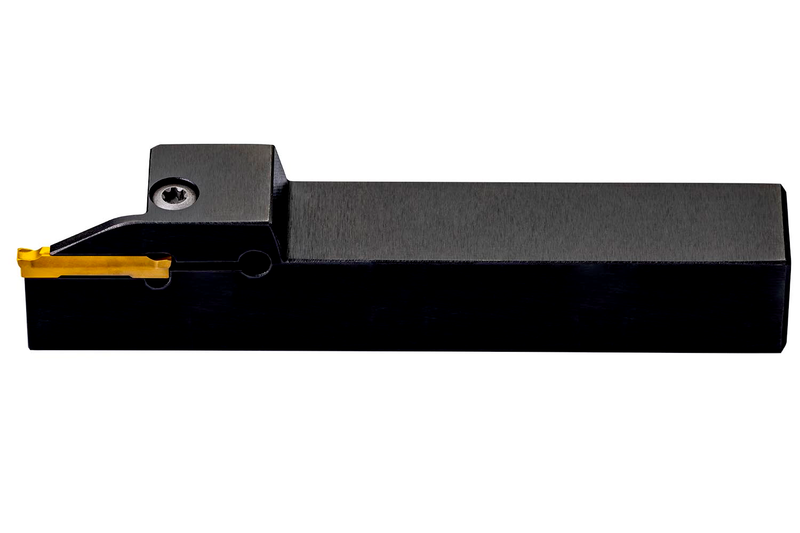

Outil de gorge à bride supérieure pour loger un insert double face de 25mm de long et 3mm de large (désignation GL3-D… ), à droite, avec insert parallèle à la queue pour un diamètre de coupe maximal de 80mm, une hauteur de queue de 20mm, une largeur de 20mm et une longueur d'outil de 125mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S2020KFR-20-80
Product Number7803235
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803235
EAN3603603675902
File Type Download
GL3-S2020KFR-20-80 — 3D Model STP Download
GL3-S2020KFR-20-80 — Line Drawing PDF Download
