GL3-S2525MFL-20-80
GL3-S2525MFL-20-80
GL3-S2525MFL-20-80

GL3-S2525MFL-20-80

UGC DOR7803236
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

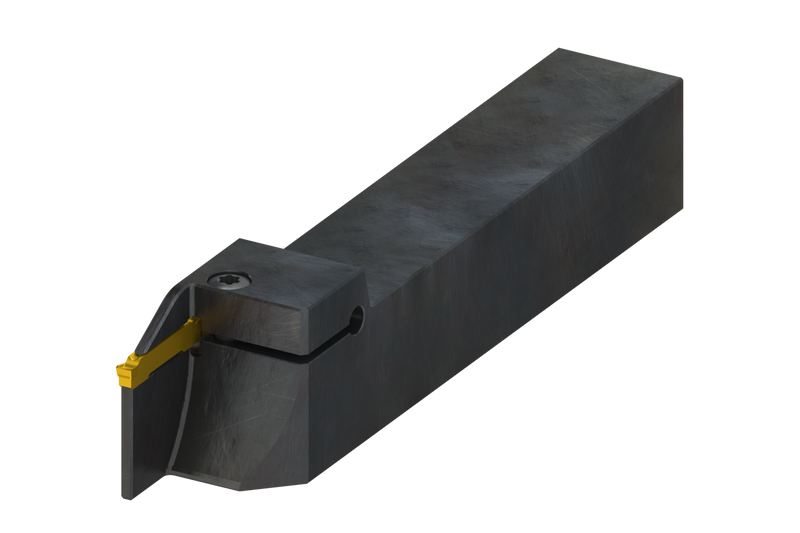

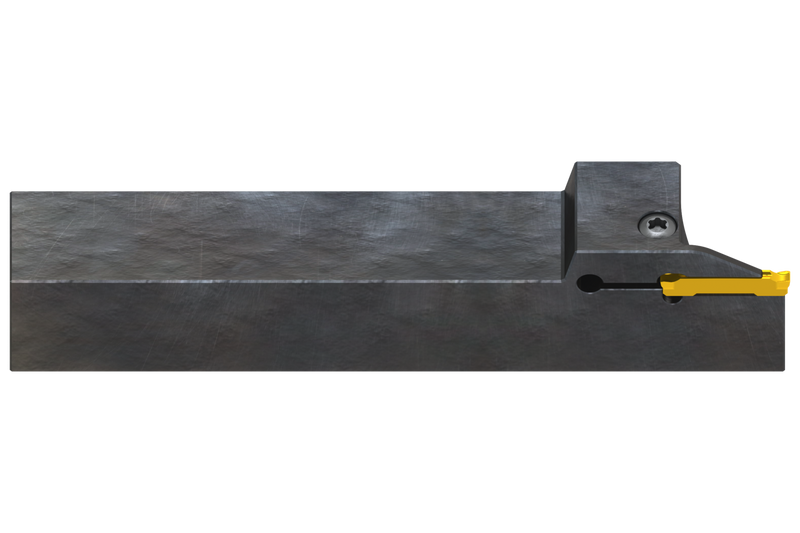

Outil de gorge à bride supérieure pour loger un insert double face de 25 mm de long avec une largeur de coupe de 3 mm (désignation GL3-D…), à gauche avec insert parallèle à la queue pour un diamètre de tronçonnage maximum de 80 mm, hauteur de la queue 25 mm, largeur 25 mm et longueur de l'outil 150 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S2525MFL-20-80
Product Number7803236
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7803236
EAN3603603675919
File Type Download
GL3-S2525MFL-20-80 — 3D Model STP Download
GL3-S2525MFL-20-80 — Line Drawing PDF Download
