GL4-S2020KFL-20-80
GL4-S2020KFL-20-80
GL4-S2020KFL-20-80

GL4-S2020KFL-20-80

UGC DOR7803242
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

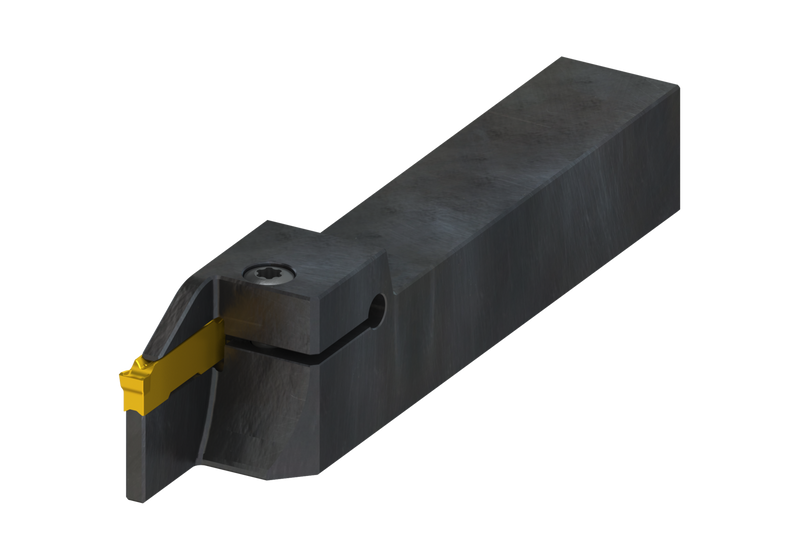

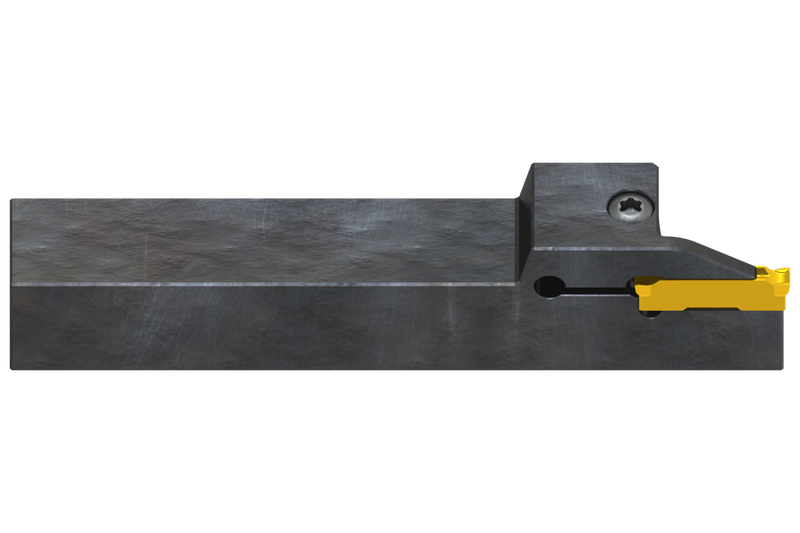

Outil de rainurage à bride supérieure pour plaquette double face de 25 mm de long avec largeur de coupe de 4 mm (désignation GL4-D…), à gauche avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80 mm, hauteur de queue 20 mm, largeur 20 mm et longueur d'outil 125 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S2020KFL-20-80
Product Number7803242
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number7803242
EAN3603603675971
File Type Download
GL4-S2020KFL-20-80 — 3D Model STP Download
GL4-S2020KFL-20-80 — Line Drawing PDF Download
