GL4-S2525MFL-20-80
GL4-S2525MFL-20-80
GL4-S2525MFL-20-80

GL4-S2525MFL-20-80

UGC DOR7803244
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

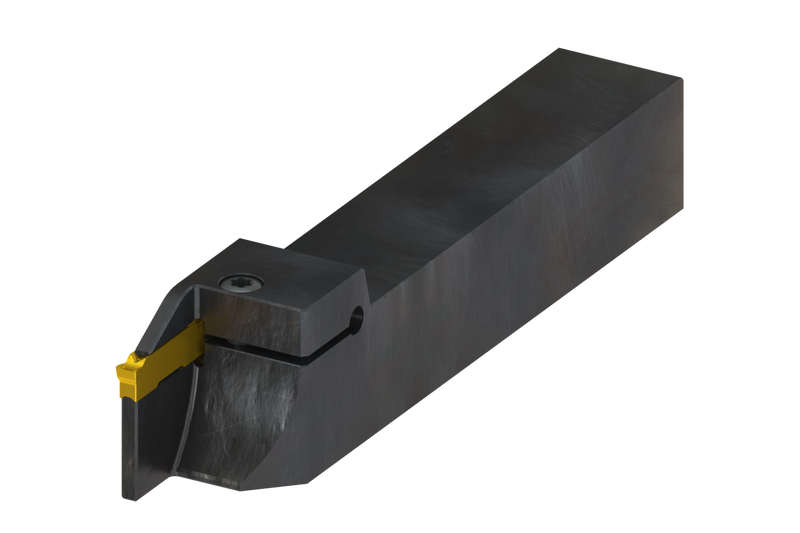

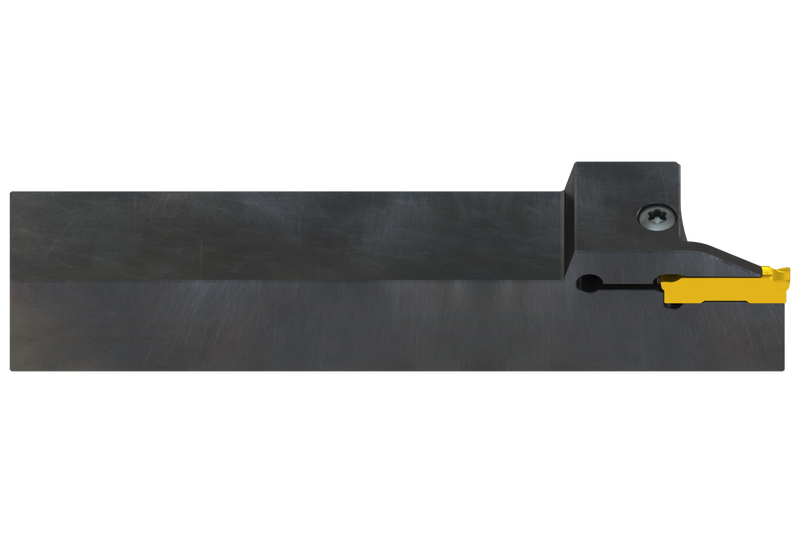

Outil à gorge à bride supérieure, pour une plaquette à double extrémité de 25 mm de long avec une largeur de coupe de 4 mm (désignation GL4-D…), à gauche, avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80 mm, hauteur de la queue 25 mm, largeur 25 mm et longueur de l’outil 150 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S2525MFL-20-80
Product Number7803244
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803244
EAN3603603675995
File Type Download
GL4-S2525MFL-20-80 — 3D Model STP Download
GL4-S2525MFL-20-80 — Line Drawing PDF Download
