GL4-S2525MFR-20-80
GL4-S2525MFR-20-80
GL4-S2525MFR-20-80

GL4-S2525MFR-20-80

UGC DOR7803245
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

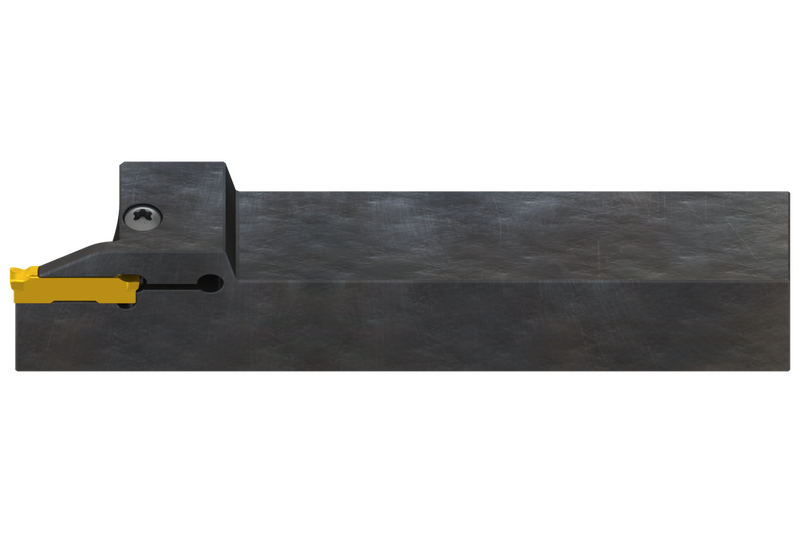

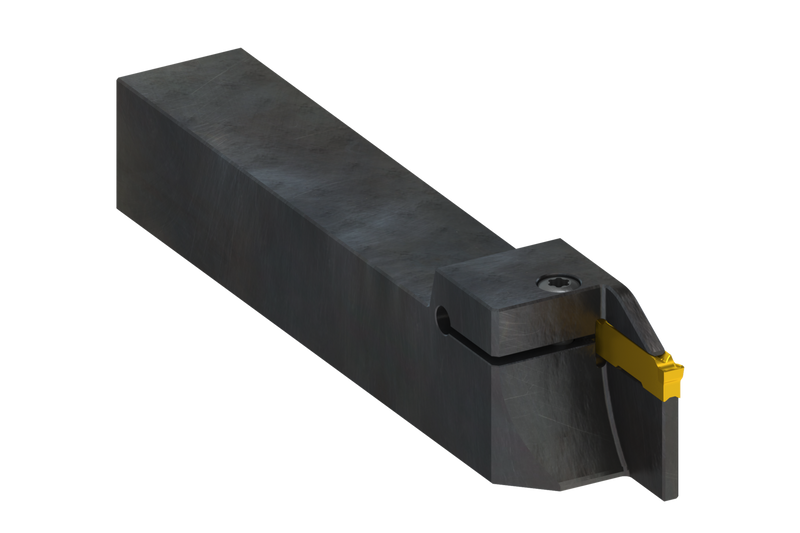

Outil de rainurage à bride supérieure pour une plaquette à deux extrémités de 25 mm de long et de 4 mm de largeur de coupe (désignation GL4-D…), à droite avec plaquette parallèle à la tige pour un diamètre de tronçonnage maximal de 80 mm, hauteur de la tige 25 mm, largeur 25 mm et longueur de l'outil 150 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S2525MFR-20-80
Product Number7803245
Product FamilyEXT GLSF(RL)
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7803245
EAN3603603676008
File Type Download
GL4-S2525MFR-20-80 — 3D Model STP Download
GL4-S2525MFR-20-80 — Line Drawing PDF Download
