GL5-S2020KFR-20-80
GL5-S2020KFR-20-80
GL5-S2020KFR-20-80

GL5-S2020KFR-20-80

UGC DOR7803250
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

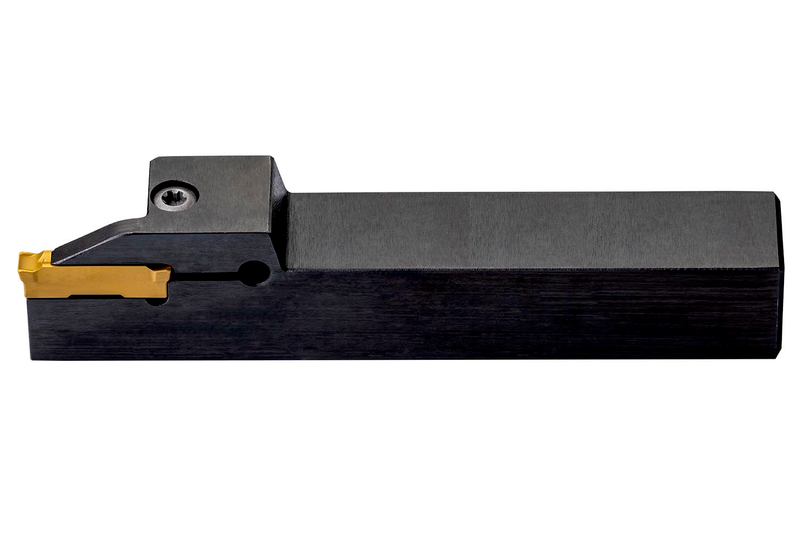

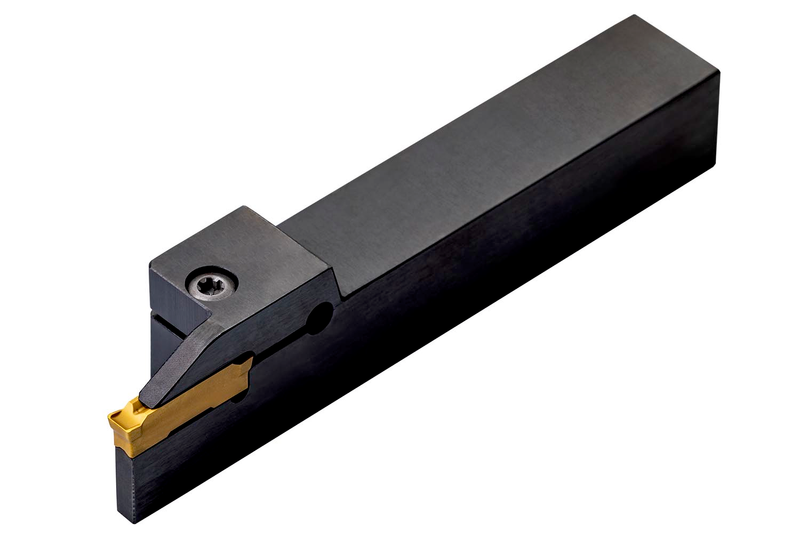

Outil de gorge à bride supérieure pour loger un insert double face de 25 mm de long avec une largeur de coupe de 5 mm (désignation GL5-D… ), droitier avec insert parallèle à la queue pour un diamètre de tronçonnage maximum de 80 mm, hauteur de queue 20 mm, largeur 20 mm et longueur d'outil 125 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tube

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-S2020KFR-20-80
Product Number7803250
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803250
EAN3603603679054
File Type Download
GL5-S2020KFR-20-80 — 3D Model STP Download
GL5-S2020KFR-20-80 — Line Drawing PDF Download
