GL5-S2525MFR-20-80
GL5-S2525MFR-20-80
GL5-S2525MFR-20-80

GL5-S2525MFR-20-80

UGC DOR7803252
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

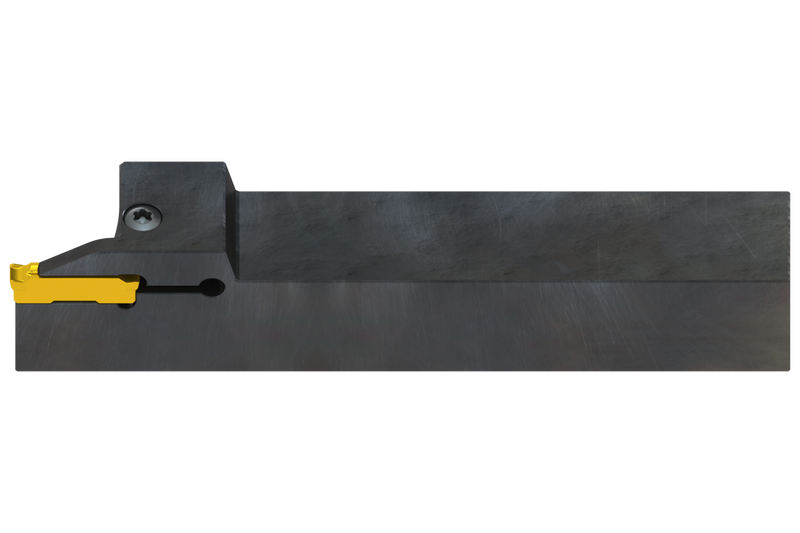

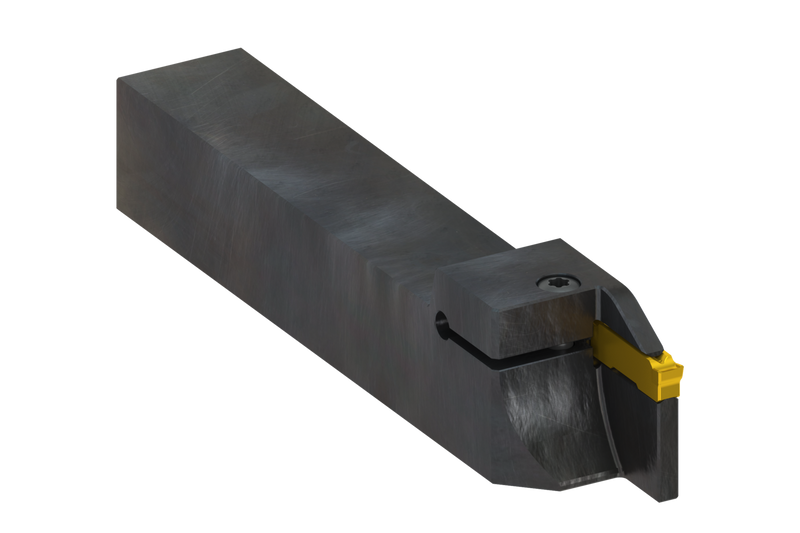

Outil à gorge à bride supérieure pour l'insertion double de 25 mm de long et 5 mm de largeur de coupe (désignation GL5-D…), à droite, avec insert parallèle à la queue pour un diamètre de coupe maximal de 80 mm, hauteur de la queue 25 mm, largeur 25 mm et longueur de l'outil 150 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-S2525MFR-20-80
Product Number7803252
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7803252
EAN3603603679078
File Type Download
GL5-S2525MFR-20-80 — 3D Model STP Download
GL5-S2525MFR-20-80 — Line Drawing PDF Download
