GL6-S2020KFL-20-80
GL6-S2020KFL-20-80
GL6-S2020KFL-20-80

GL6-S2020KFL-20-80

UGC DOR7803254
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

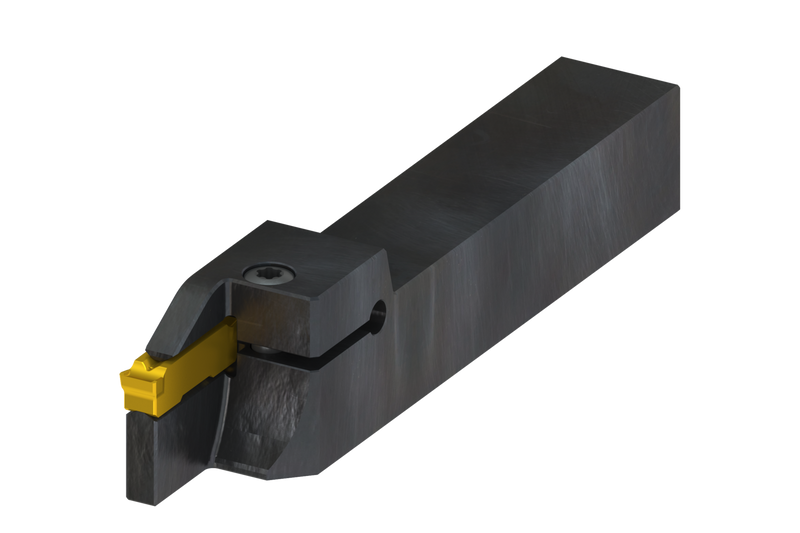

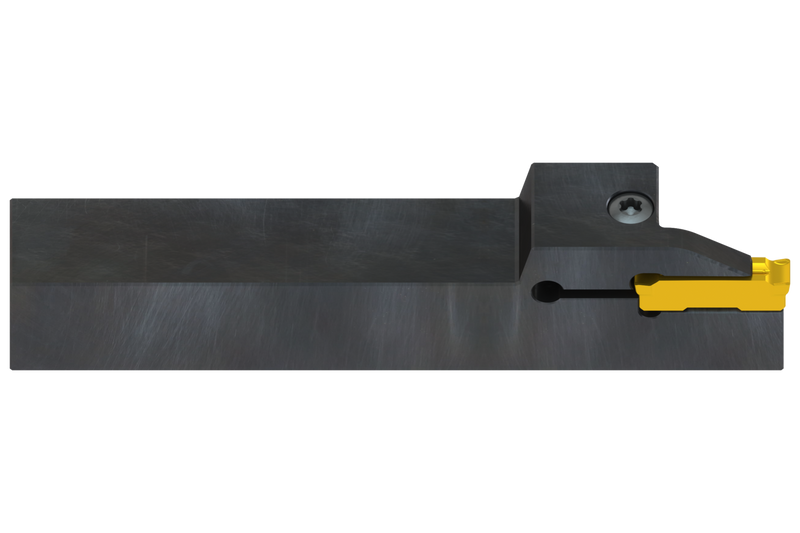

Outil de gorge à bridage supérieur pour une plaquette double extrémité de 25 mm de long et de 6 mm de largeur de coupe (désignation GL6-D…), à gauche avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80 mm, hauteur de queue 20 mm, largeur 20 mm et longueur d'outil 125 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radial, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-S2020KFL-20-80
Product Number7803254
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"

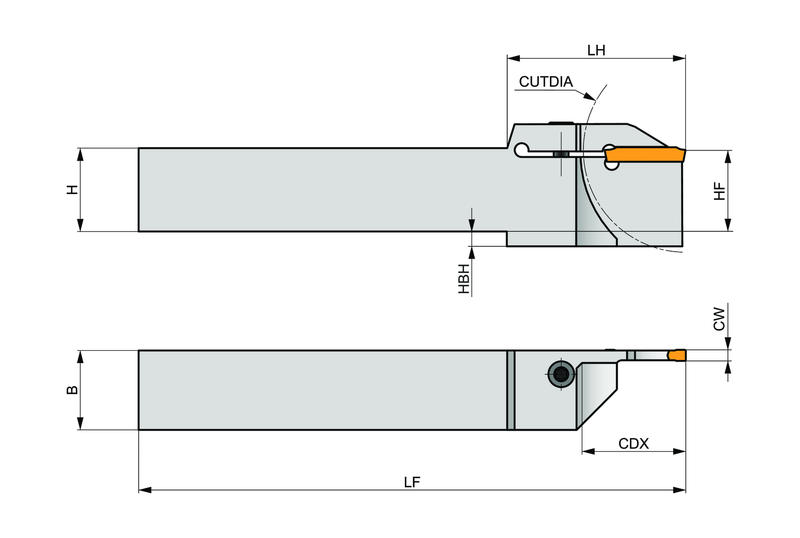

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7803254
EAN3603603679092
File Type Download
GL6-S2020KFL-20-80 — 3D Model STP Download
GL6-S2020KFL-20-80 — Line Drawing PDF Download
