GL2-S10CFL-,63-1,78
GL2-S10CFL-,63-1,78
GL2-S10CFL-,63-1,78

GL2-S10CFL-,63-1,78

UGC DOR7804075
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

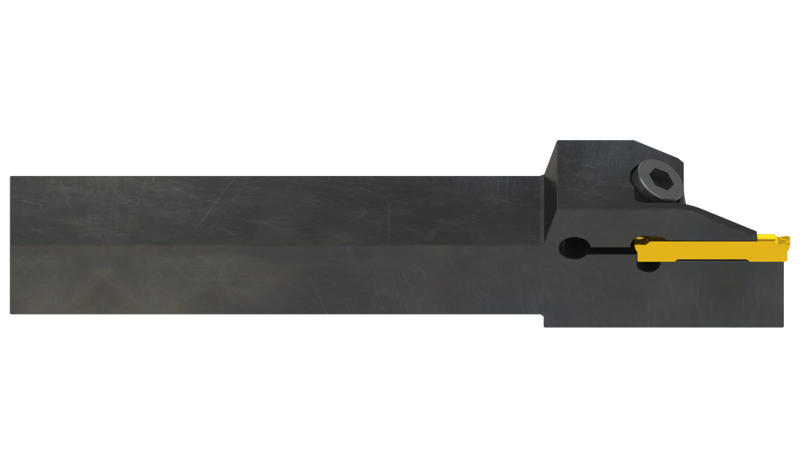

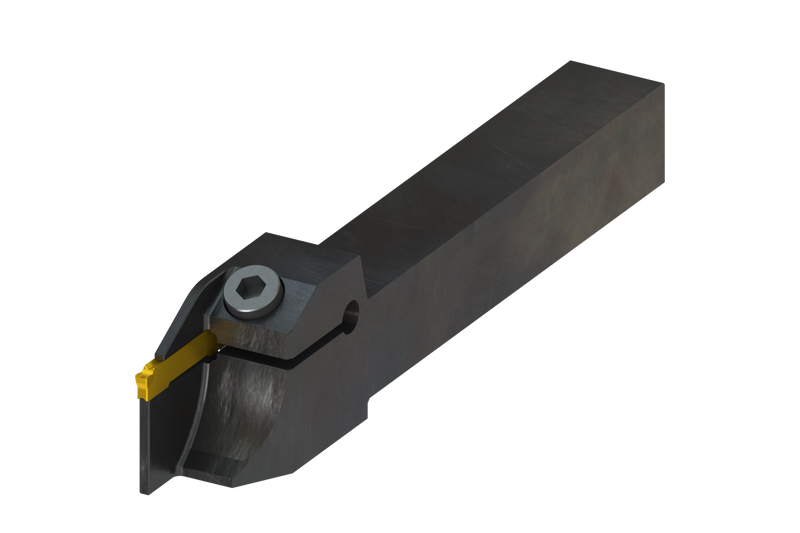

Outil de rainurage à bride supérieure pour un insert double embout de 0,984" de long et de 0,078-0,098" de largeur de coupe (désignation GL2-D… ), à gauche, avec l'insert parallèle à la tige pour un diamètre de tronçonnage maximal de 1,780", hauteur de tige 5/8", largeur 5/8" et longueur d'outil 5" pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S10CFL-,63-1,78
Product Number7804075
Product FamilyIGLSF(LR) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

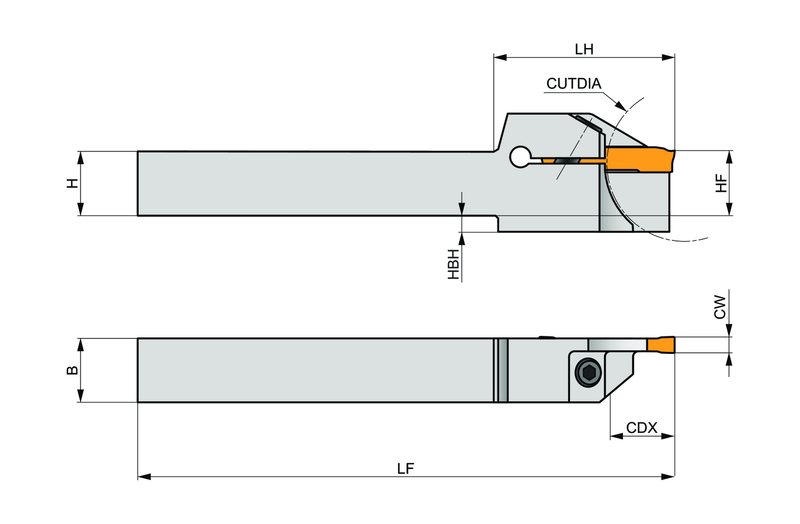

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7804075
EAN3603603681019
File Type Download
GL2-S10CFL-,63-1,78 — 3D Model STP Download
GL2-S10CFL-,63-1,78 — Line Drawing PDF Download
