GL2-S10CFR-,63-1,78
GL2-S10CFR-,63-1,78
GL2-S10CFR-,63-1,78

GL2-S10CFR-,63-1,78

UGC DOR7804076
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

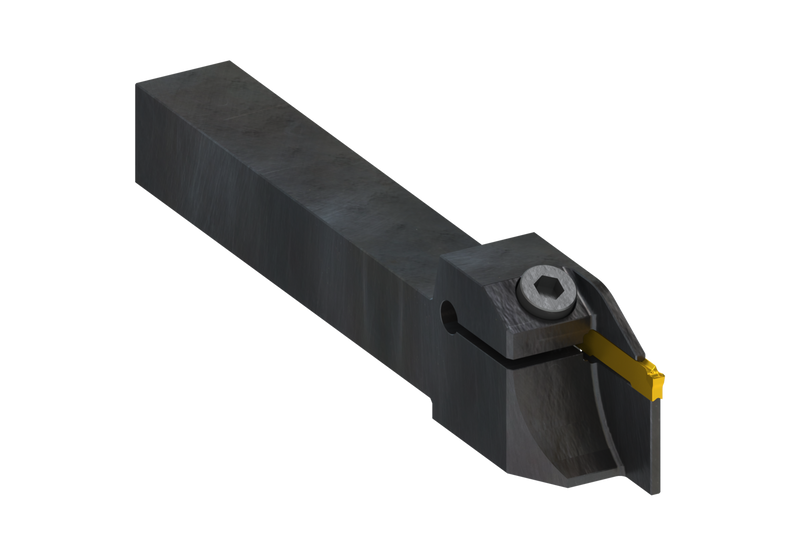

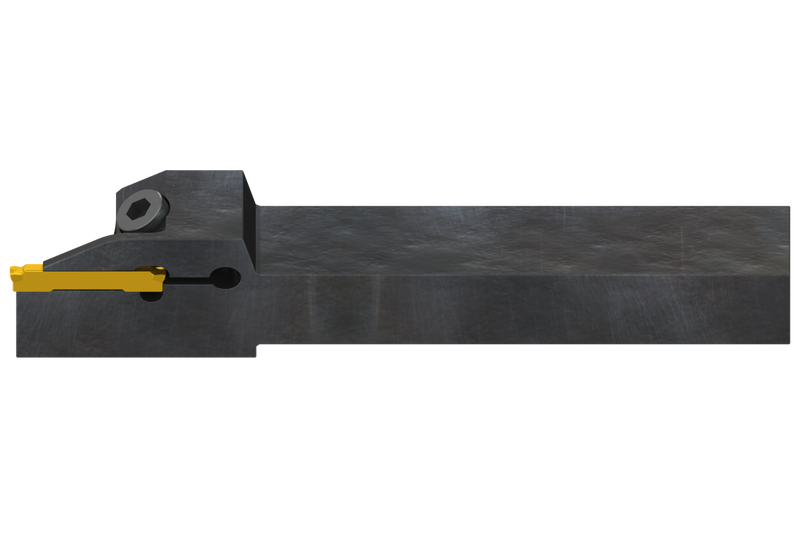

Outil de rainurage à bride supérieure pour plaquette double face de 0,984" de long avec une largeur de coupe de 0,078-0,098" (désignation GL2-D…), à droite avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 1,780", hauteur de la queue 5/8", largeur 5/8" et longueur de l'outil 5" pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI)GL2-S10CFR-,63-1,78
Product Name (ISO)GL2-S10CFR-.63-1.78
Product Number7804076
Product FamilyIGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

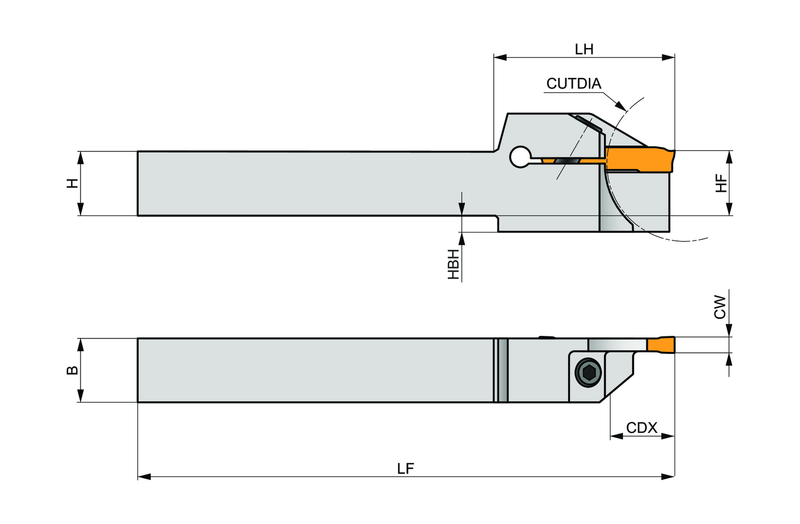

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804076
EAN3603603681026
File Type Download
GL2-S10CFR-,63-1,78 — 3D Model STP Download
GL2-S10CFR-,63-1,78 — Line Drawing PDF Download
