GL3-S10CFL-.63-1.78
GL3-S10CFL-.63-1.78
GL3-S10CFL-.63-1.78

GL3-S10CFL-.63-1.78

UGC DOR7804141
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

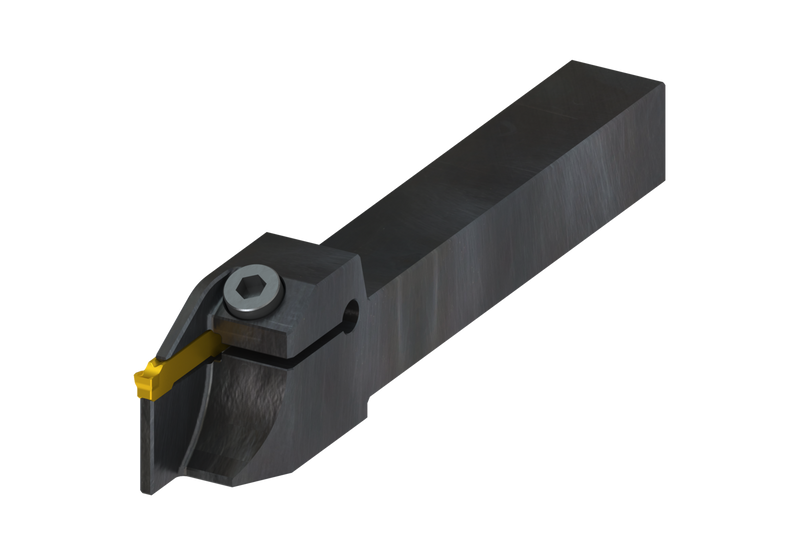

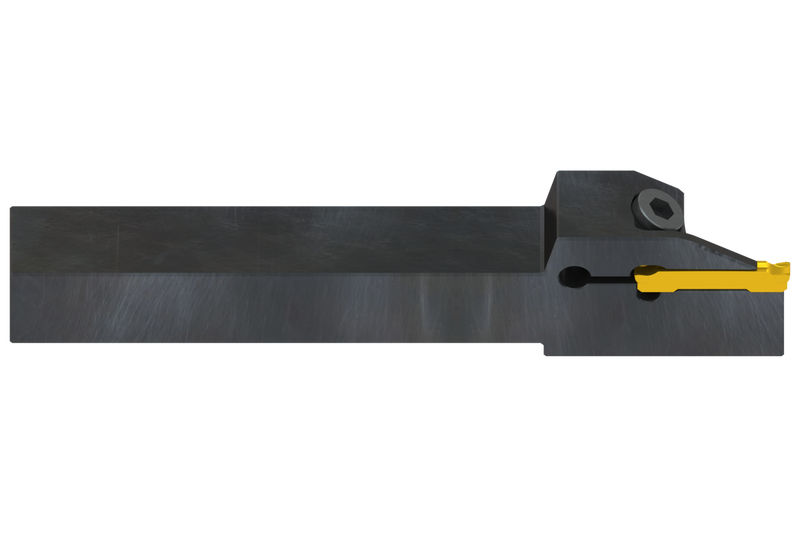

Outil de rainurage à bride supérieure pour plaquette double face de 24,99 mm de long, largeur de coupe de 3 mm (désignation GL3-D…), à gauche, avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 45,21 mm, hauteur de queue de 15,88 mm, largeur de 15,88 mm et longueur d'outil de 127 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI)GL3-S10CFL-,63-1,78
Product Name (ISO)GL3-S10CFL-.63-1.78
Product Number7804141
Product FamilyIGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

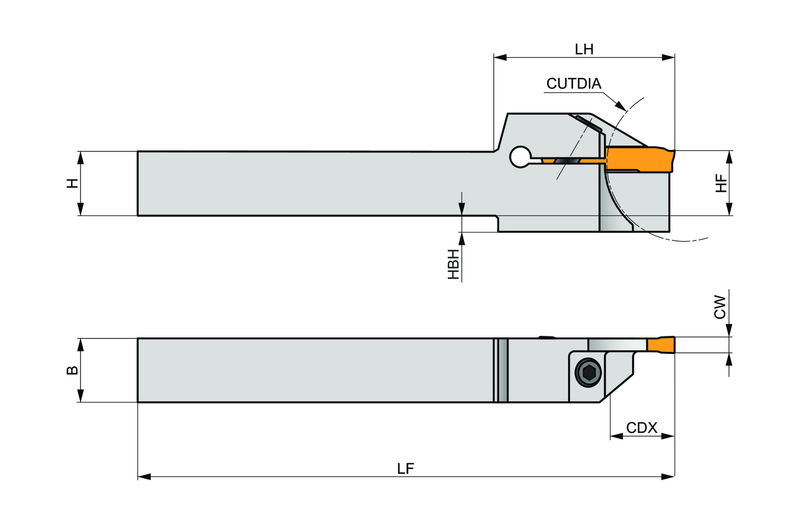

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804141
EAN3603603681071
File Type Download
GL3-S10CFL-.63-1.78 — 3D Model STP Download
GL3-S10CFL-.63-1.78 — Line Drawing PDF Download
