GL3-S10CFR-.63-1.78
GL3-S10CFR-.63-1.78
GL3-S10CFR-.63-1.78

GL3-S10CFR-.63-1.78

UGC DOR7804142
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$266.00 CAD - $266.00 CAD
$266.00 CAD
$266.00 CAD - $266.00 CAD
$266.00 CAD

Vendu en lots de : 1

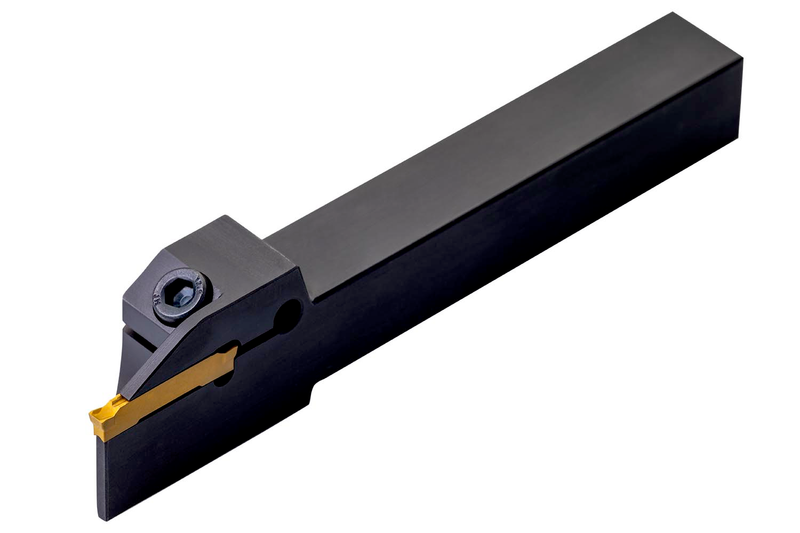

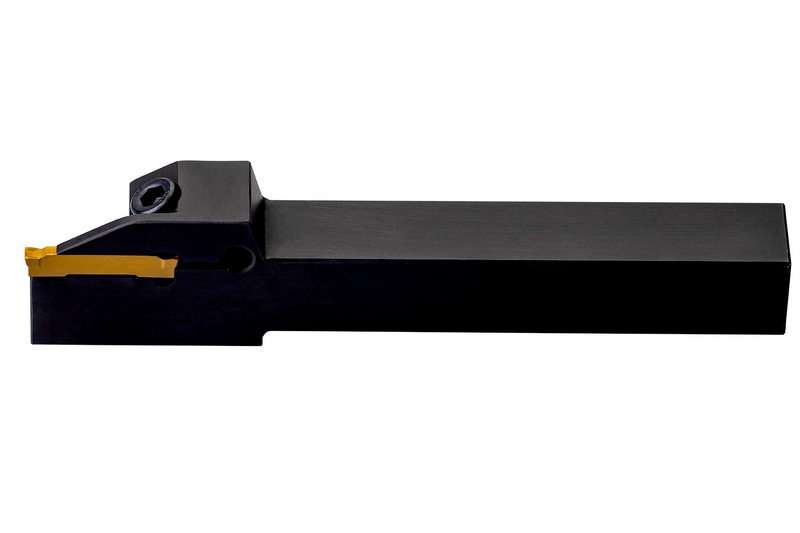

Outil de rainurage à bride supérieure pour plaquette double face de 0,984" de long avec une largeur de coupe de 0,118" (désignation GL3-D…), à droite avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximum de 1,780", hauteur de queue 5/8", largeur 5/8" et longueur d'outil 5" pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI)GL3-S10CFR-,63-1,78
Product Name (ISO)GL3-S10CFR-.63-1.78
Product Number7804142
Product FamilyIGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

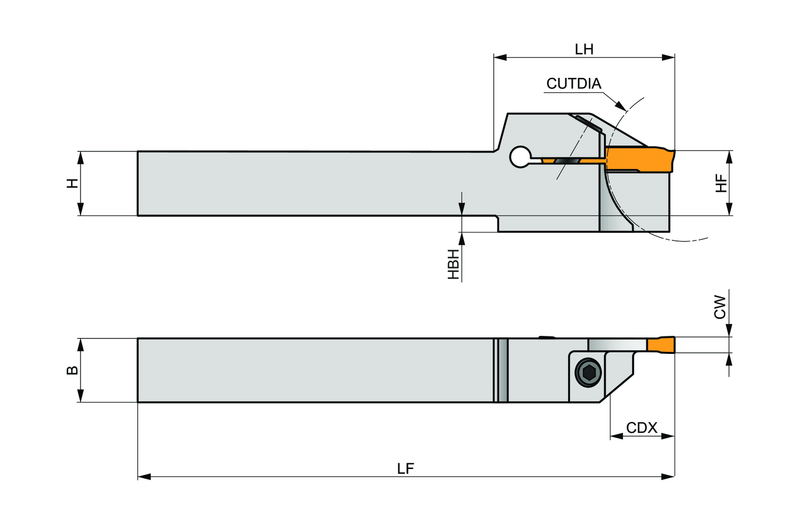

Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.625 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7804142
EAN3603603681088
File Type Download
GL3-S10CFR-.63-1.78 — 3D Model STP Download
GL3-S10CFR-.63-1.78 — Line Drawing PDF Download
