GL3-S12CFL-.79-3.15
GL3-S12CFL-.79-3.15
GL3-S12CFL-.79-3.15

GL3-S12CFL-.79-3.15

UGC DOR7804143
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

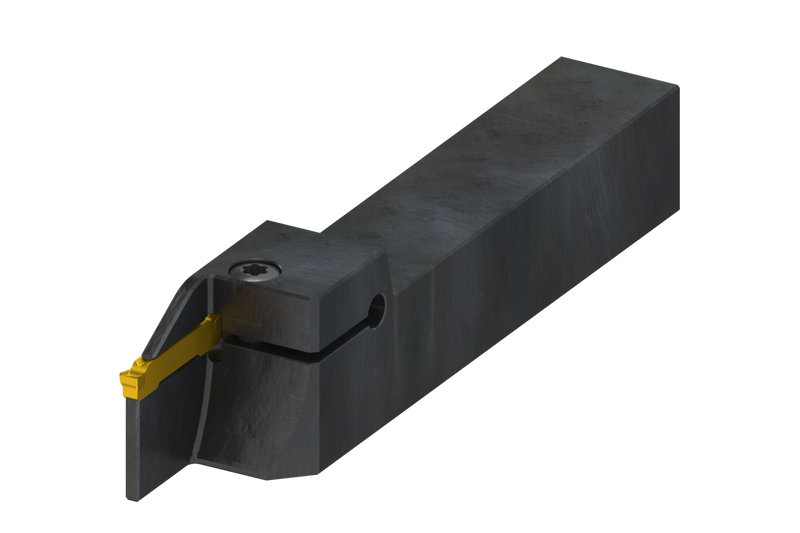

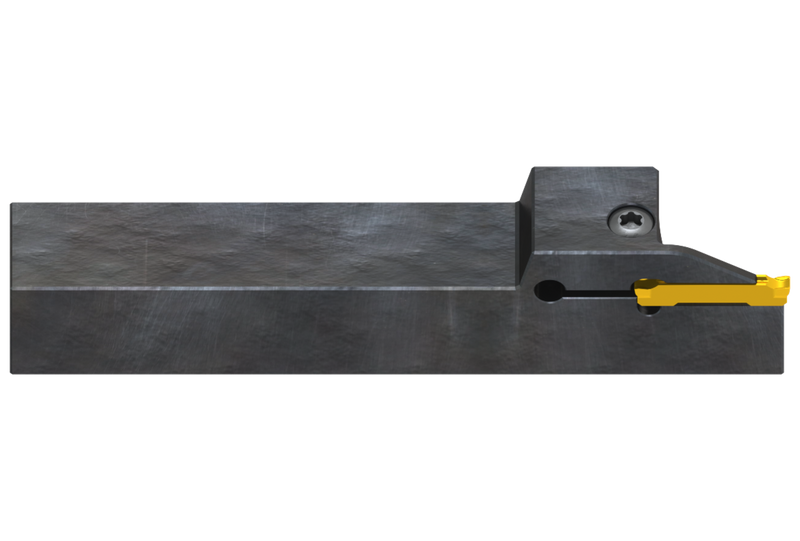

Outil de rainurage à bride supérieure pour plaquette double face de 24,99 mm de long et de 3,00 mm de largeur de coupe (désignation GL3-D…), à gauche avec plaquette parallèle à la tige pour un diamètre de tronçonnage maximal de 80,00 mm, hauteur de tige de 19,05 mm, largeur de 19,05 mm et longueur d'outil de 127 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S12CFL-.79-3.15
Product Number7804143
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804143
EAN3603603681095
File Type Download
GL3-S12CFL-.79-3.15 — 3D Model STP Download
GL3-S12CFL-.79-3.15 — Line Drawing PDF Download
