GL4-S12CFR-.79-3.15
GL4-S12CFR-.79-3.15
GL4-S12CFR-.79-3.15

GL4-S12CFR-.79-3.15

UGC DOR7804150
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

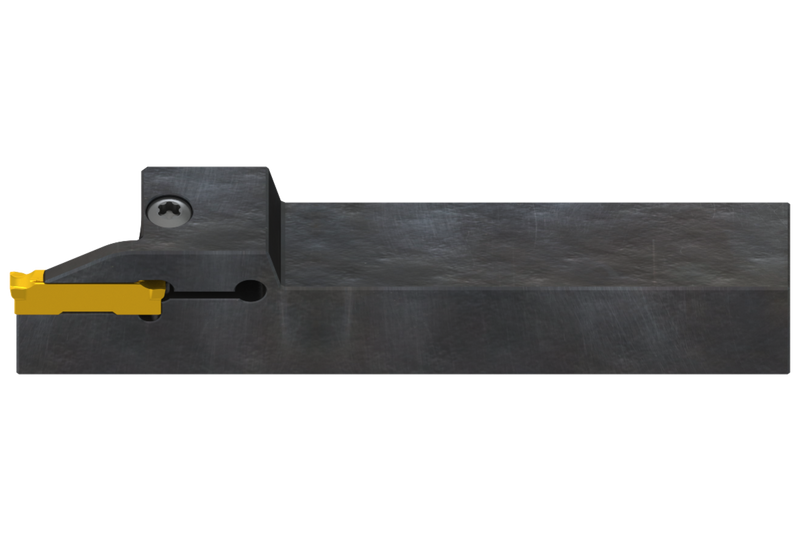

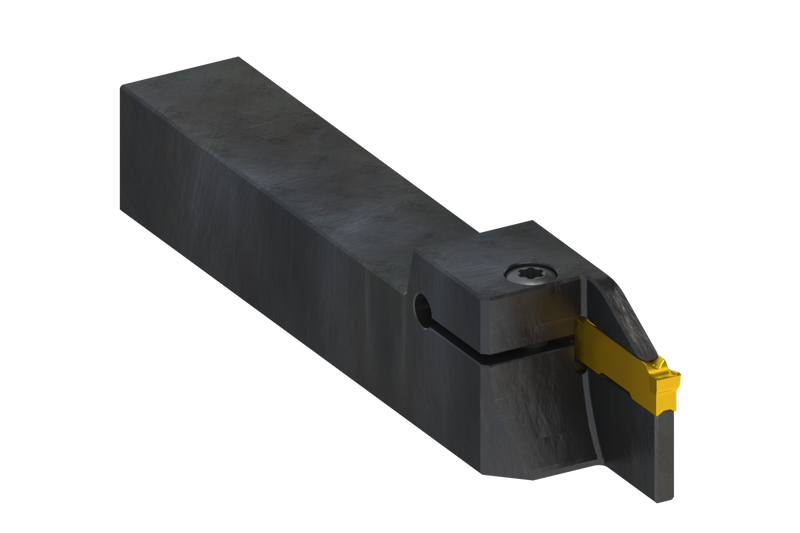

Outil de rainurage à bridage supérieur pour la fixation d'un insert double face de 0,984" de long et de 0,157" de largeur de coupe (désignation GL4-D…), droit avec insert parallèle à la queue pour un diamètre de tronçonnage maximal de 3,150", hauteur de queue 3/4", largeur 3/4" et longueur d'outil 5" pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-S12CFR-,79-3,15
Product Number7804150
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804150
EAN3603603681163
File Type Download
GL4-S12CFR-.79-3.15 — 3D Model STP Download
GL4-S12CFR-.79-3.15 — Line Drawing PDF Download
