GL4-S16DFL-.79-3,15
GL4-S16DFL-.79-3,15
GL4-S16DFL-.79-3,15

GL4-S16DFL-.79-3,15

UGC DOR7804151
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

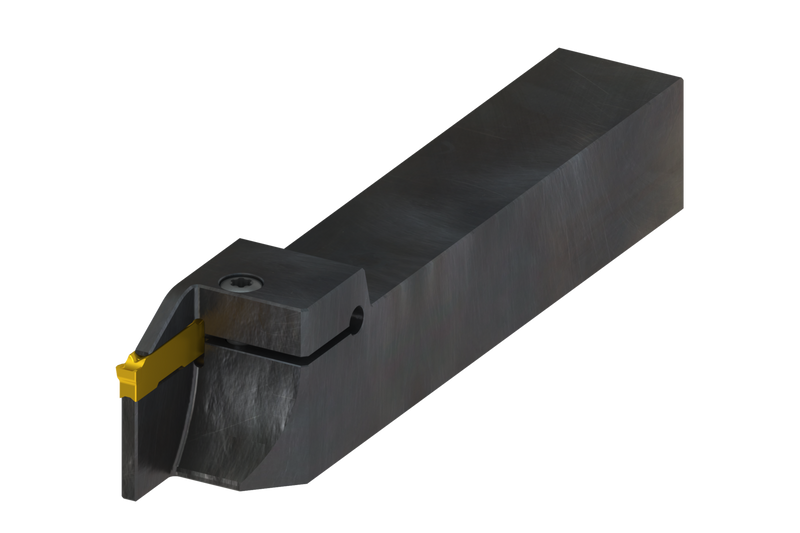

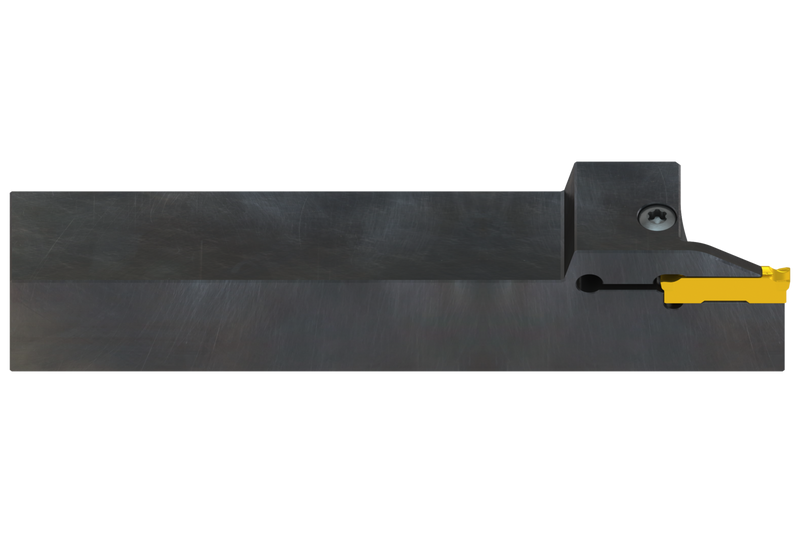

Outil de gorge à bride supérieure pour plaquette à double extrémité de 24,99 mm de long, largeur de coupe 3,99 mm (désignation GL4-D…), à gauche avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80,01 mm, hauteur de tige 25,4 mm, largeur 25,4 mm et longueur d'outil 152,4 mm pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainure radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI)GL4-S16DFL-.79-3.15
Product Name (ISO)GL4-S16DFL-,79-3,15
Product Number7804151
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7804151
EAN3603603681170
File Type Download
GL4-S16DFL-.79-3,15 — 3D Model STP Download
GL4-S16DFL-.79-3,15 — Line Drawing PDF Download
