GL5-S12CFL-0,79-3,15
GL5-S12CFL-0,79-3,15
GL5-S12CFL-0,79-3,15

GL5-S12CFL-0,79-3,15

UGC DOR7804155
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

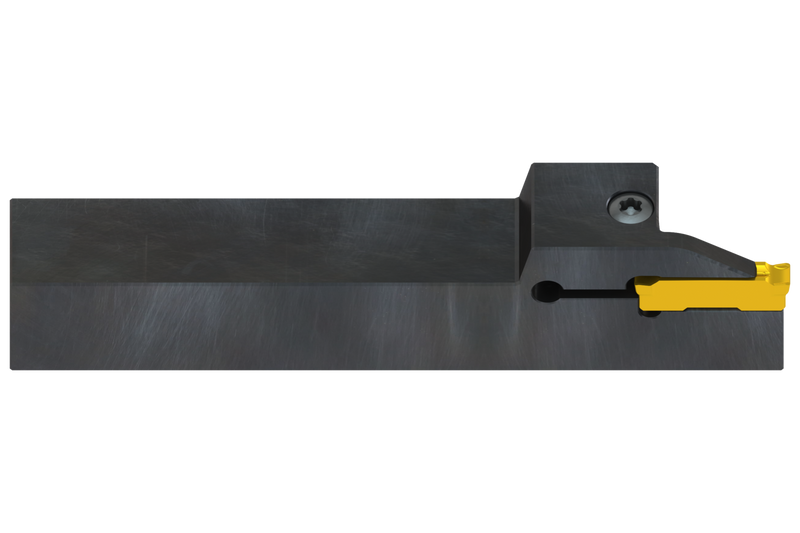

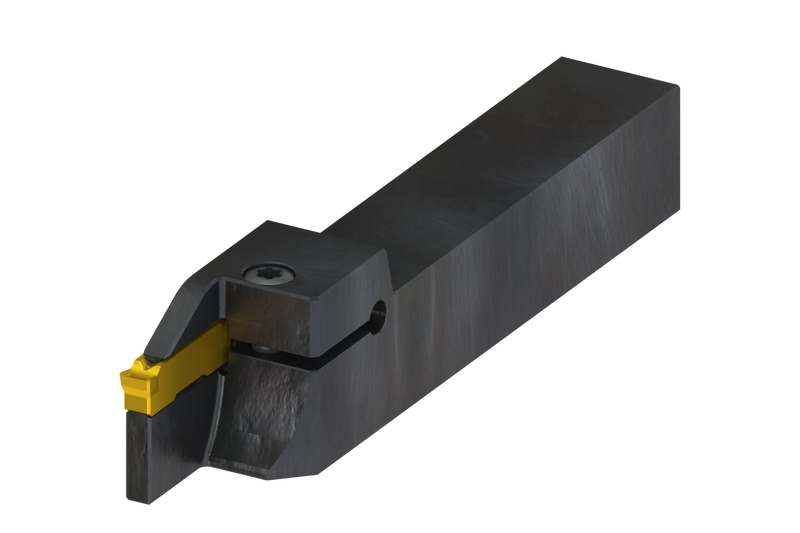

Outil de rainurage à bride supérieure pour plaquette double face de 24,99 mm de long et de 5,00 mm de largeur de coupe (désignation GL5-D…), à gauche avec plaquette parallèle à la tige pour un diamètre de tronçonnage maximum de 80,01 mm, hauteur de tige 19,05 mm, largeur 19,05 mm et longueur d'outil 127 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL5-S12CFL-,79-3,15
Product Number7804155
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804155
EAN3603603681217
File Type Download
GL5-S12CFL-0,79-3,15 — 3D Model STP Download
GL5-S12CFL-0,79-3,15 — Line Drawing PDF Download
