GL5-S16DFR-.79-3.15
GL5-S16DFR-.79-3.15
GL5-S16DFR-.79-3.15

GL5-S16DFR-.79-3.15

UGC DOR7804158
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

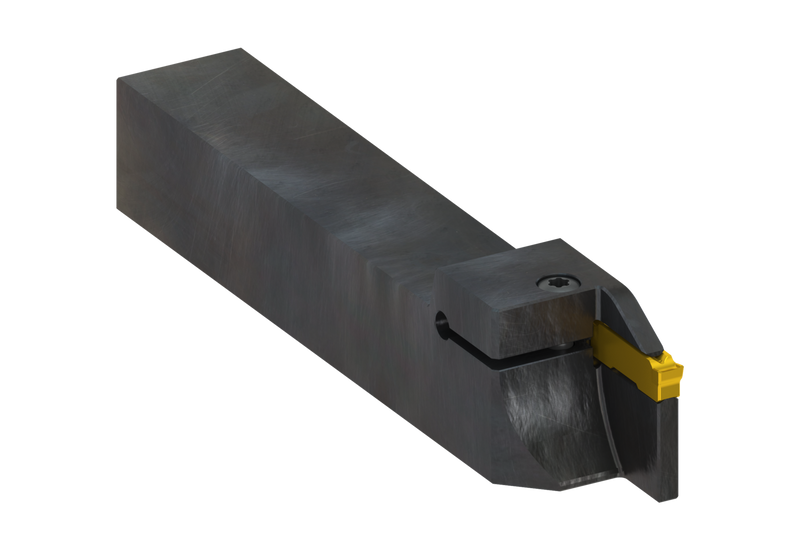

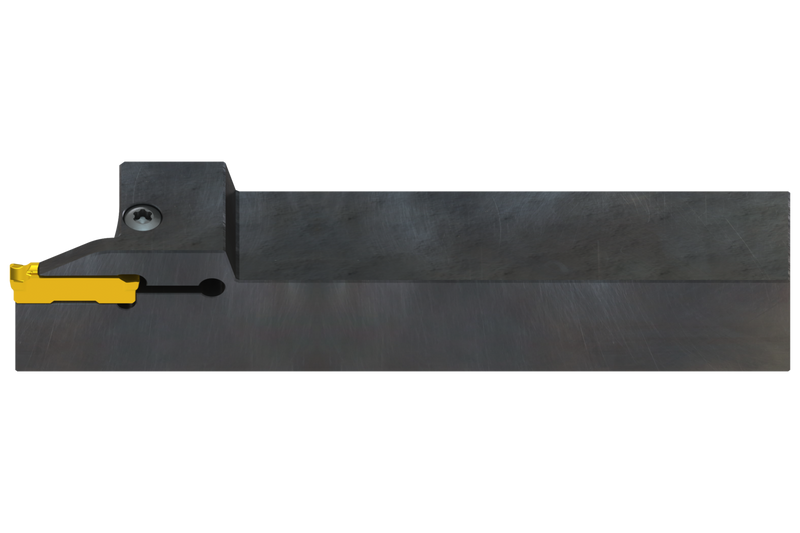

Outil de gorge à bride supérieure pour plaquette double face de 24,99 mm de long et de 5,00 mm de largeur de coupe (désignation GL5-D…), à droite avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 80,00 mm, hauteur de queue 25,40 mm, largeur 25,40 mm et longueur d'outil 150,00 mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI)GL5-S16DFR-.79-3.15
Product Name (ISO)GL5-S16DFR-,79-3,15
Product Number7804158
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7804158
EAN3603603681248
File Type Download
GL5-S16DFR-.79-3.15 — 3D Model STP Download
GL5-S16DFR-.79-3.15 — Line Drawing PDF Download
