GL6-S12CFR-.79-3.15
GL6-S12CFR-.79-3.15
GL6-S12CFR-.79-3.15

GL6-S12CFR-.79-3.15

UGC DOR7804160
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

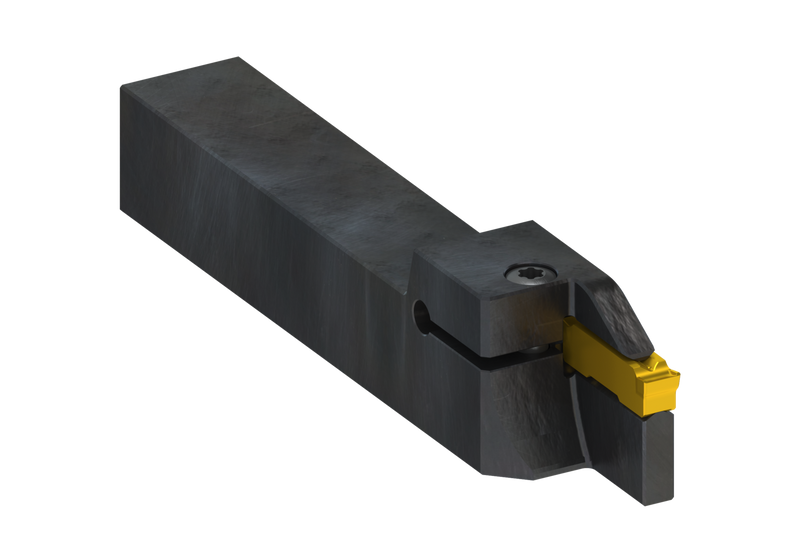

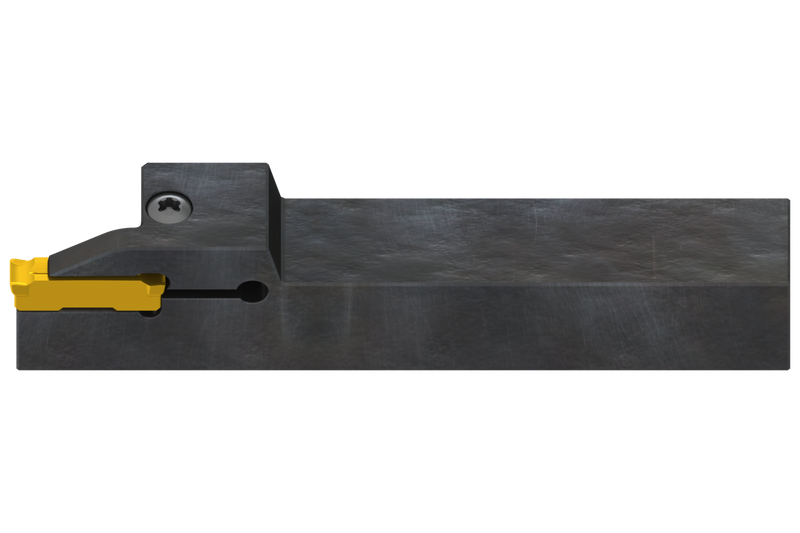

Outil à rainurer à bride supérieure pour la fixation d'un insert double pointe de 0,984" de long et 0,236" de largeur de coupe (désignation GL6-D… ), droitier avec insert parallèle à la queue pour un diamètre de tronçonnage maximal de 3,150", hauteur de queue 3/4", largeur 3/4" et longueur d'outil 5" pour le copiage multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorges radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-S12CFR-.79-3.15
Product Number7804160
Product FamilyIGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.79"
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7804160
EAN3603603681262
File Type Download
GL6-S12CFR-.79-3.15 — 3D Model STP Download

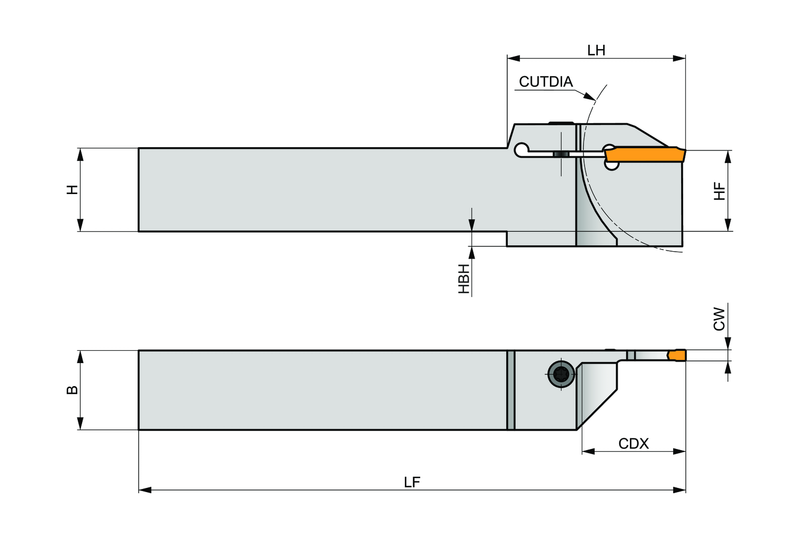

GL6-S12CFR-.79-3.15 — Line Drawing PDF Download
