UGC DOR7806101
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.46 CAD - $13.46 CAD
$13.46 CAD
$13.46 CAD - $13.46 CAD
$13.46 CAD

Vendu en lots de : 1

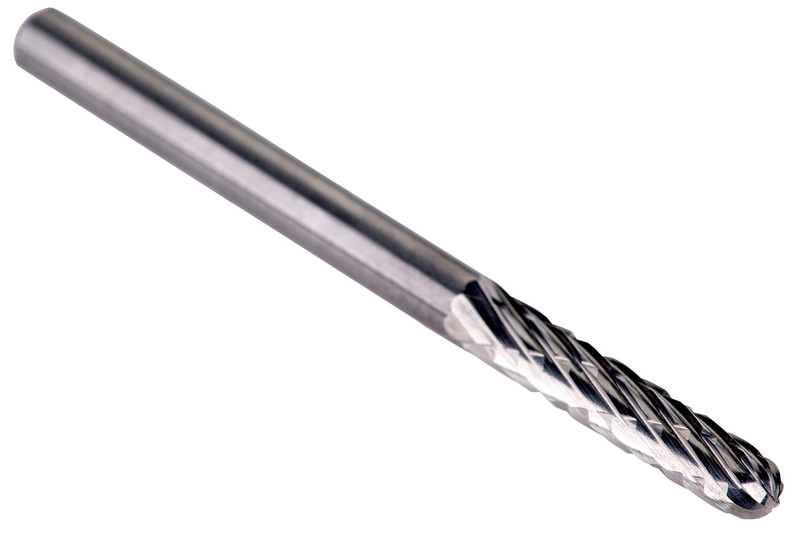

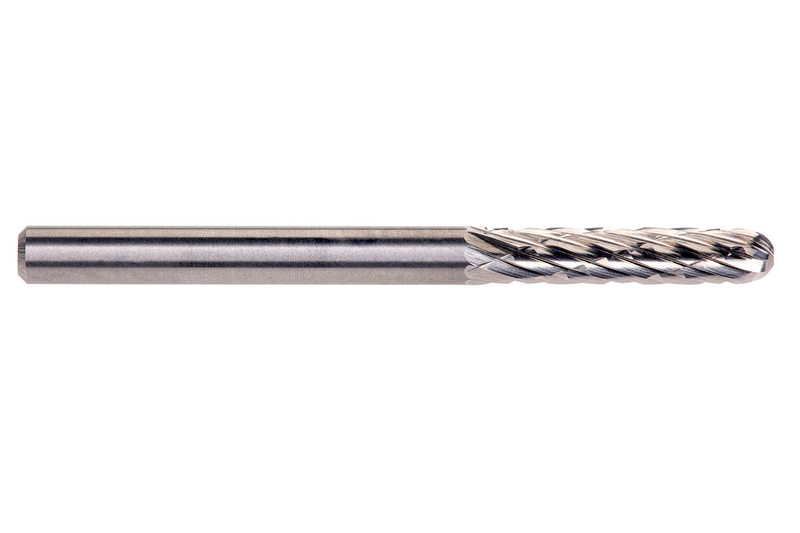

Fraise-lime cylindrique à nez sphérique (forme C), diamètre 3mm avec une longueur de coupe de 14mm, une longueur totale de 38mm et une queue de 3mm, en carbure monobloc finition brillante, taille simple AS avec sur-denture hélicoïdale à gauche légère pour l'usinage de contours et d'arcs circulaires dans les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P5053.0X3.0
GradeLumineux
Product Number7806101
Product FamilyP505

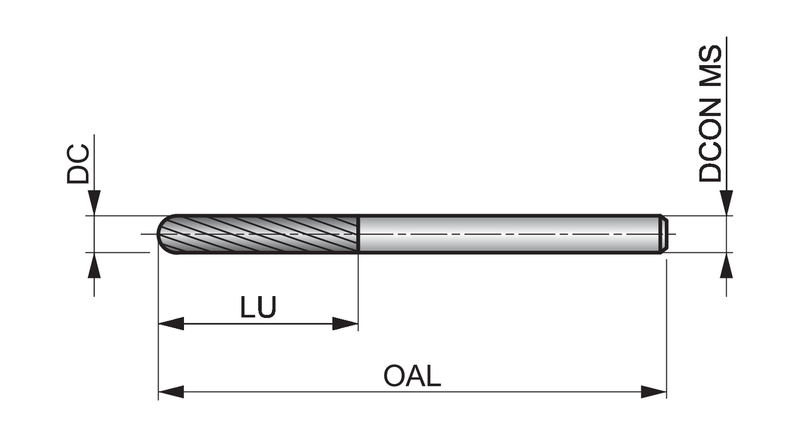

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7806101
EAN7320760886106
File Type Download
P5053.0X3.0 — Line Drawing PDF Download
