P5073.0X3.0
P5073.0X3.0
P5073.0X3.0

P5073.0X3.0

UGC DOR7806102
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.46 CAD - $13.46 CAD
$13.46 CAD
$13.46 CAD - $13.46 CAD
$13.46 CAD

Vendu en lots de : 1

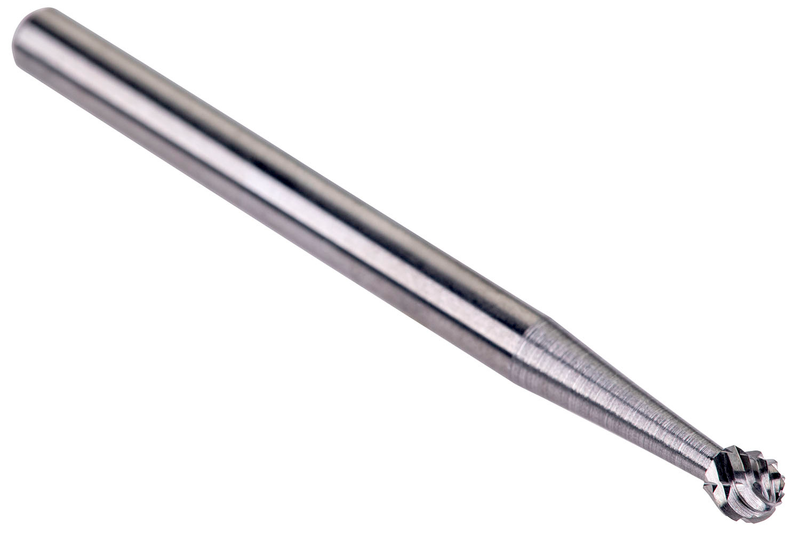

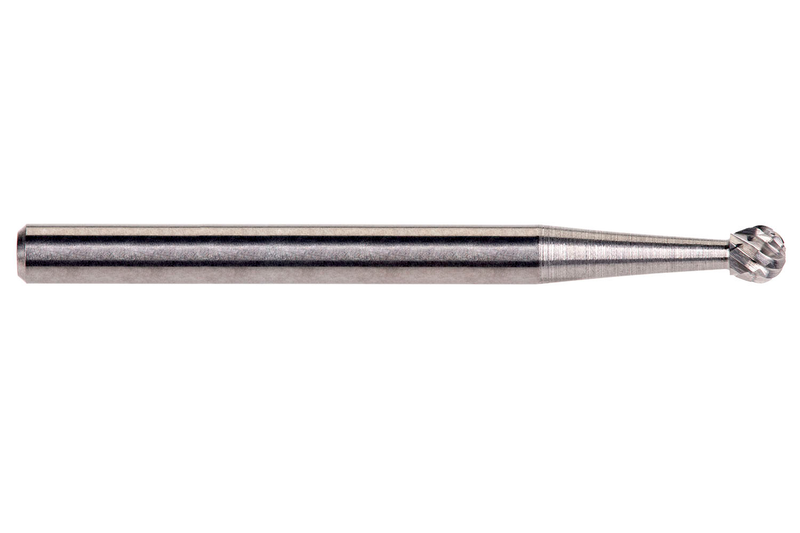

Fraise boule (forme D), diamètre 3 mm avec longueur de coupe de 2,5 mm, longueur totale de 38 mm et queue de 3 mm, carbure monobloc avec finition brillante, style de cannelure simple AS avec une légère taille croisée à gauche pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P5073.0X3.0
GradeLumineux
Product Number7806102
Product FamilyP507

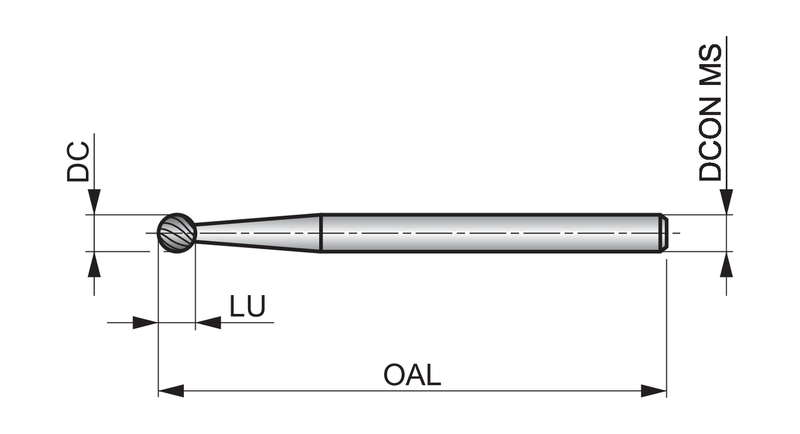

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)2.5 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7806102
EAN7320760886113
File Type Download
P5073.0X3.0 — Line Drawing PDF Download
