P5213.0X3.0
P5213.0X3.0
P5213.0X3.0

P5213.0X3.0

UGC DOR7806108
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.46 CAD - $13.46 CAD
$13.46 CAD
$13.46 CAD - $13.46 CAD
$13.46 CAD

Vendu en lots de : 1

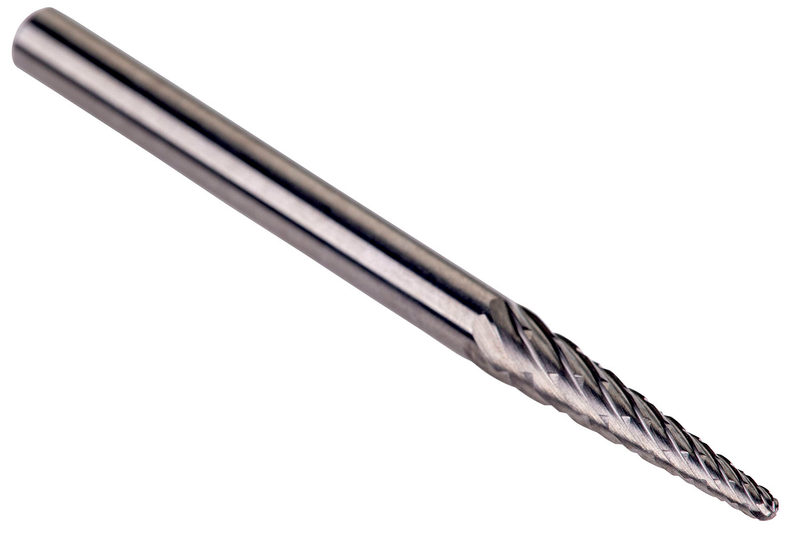

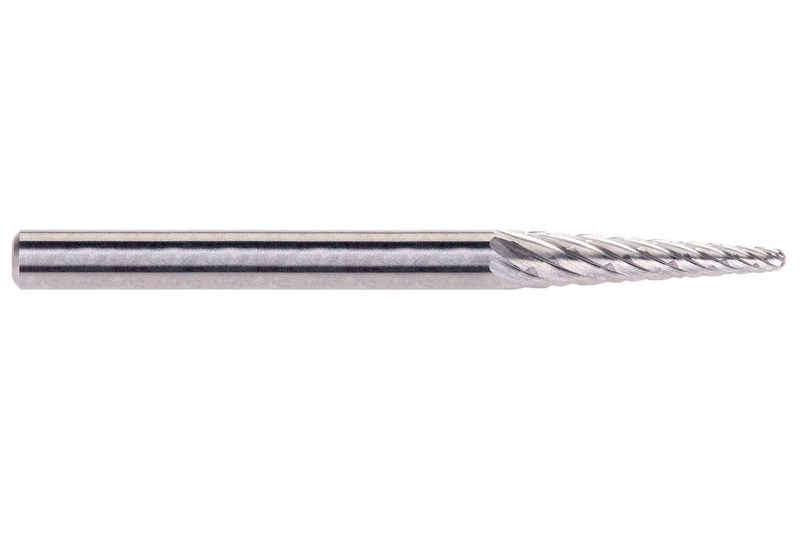

Fraise conique à bout sphérique (forme L), diamètre 3 mm, longueur de coupe 14 mm, longueur totale 38 mm et queue de 3 mm, carbure monobloc, finition brillante, taille simple AS avec surtaillage à gauche pour l'agrandissement de trous, l'arrondi d'arêtes et la finition de surfaces dans les angles étroits ou autres zones difficiles d'accès dans les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P5213.0X3.0
GradeLumineux
Product Number7806108
Product FamilyP521
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7806108
EAN7320760886175
File Type Download

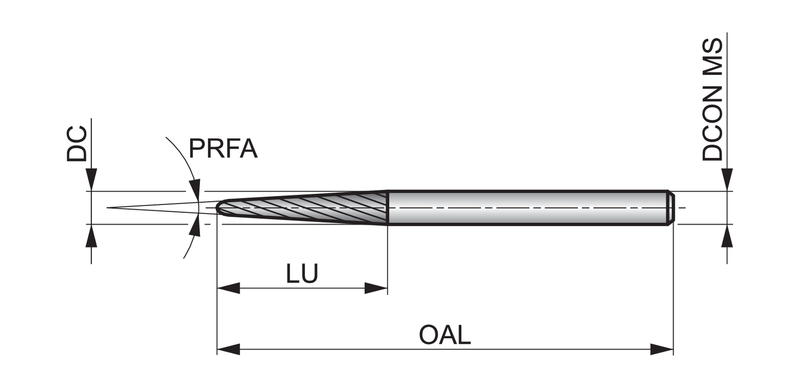

P5213.0X3.0 — Line Drawing PDF Download
