P1004.9
P1004.9
P1004.9

P1004.9

UGC DOR7806111
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.93 CAD - $20.93 CAD
$20.93 CAD
$20.93 CAD - $20.93 CAD
$20.93 CAD

Vendu en lots de : 1

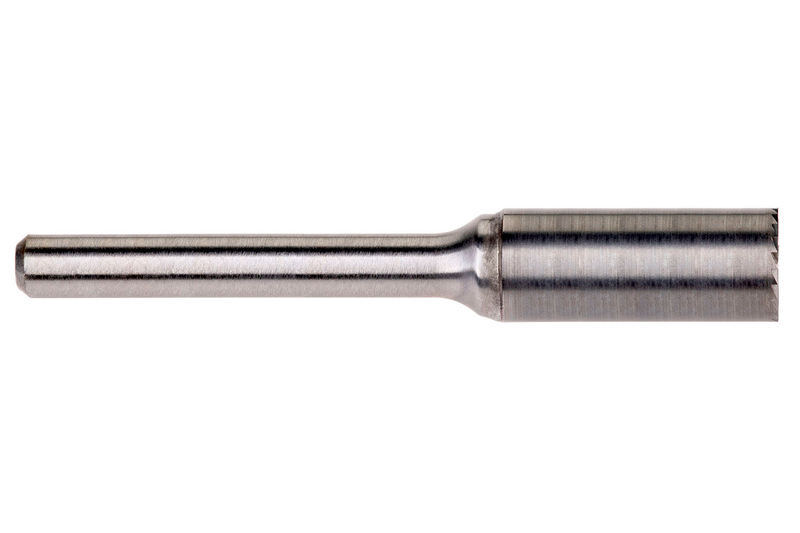

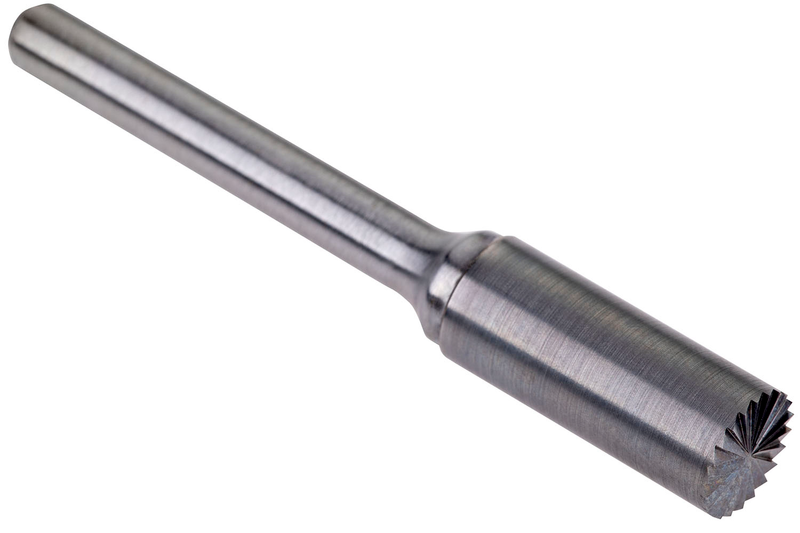

Fraise-lime frontale, diamètre 4,9 mm, longueur totale 50 mm et queue 6 mm, carbure monobloc finition brillante, coupe simple avec arêtes moyennement espacées pour rectifier la surface d'un boulon cassé sur l'acier et l'acier moulé, et l'acier inoxydable ferritique, martensitique et austénitique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P1004.9
GradeLumineux
Product Number7806111
Product FamilyP100

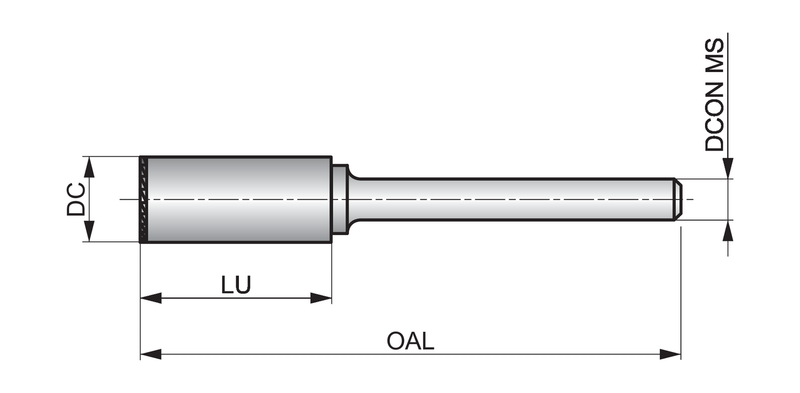

Dimensions
Cutting Diameter — in (DC)0.1929"
Cutting Diameter — mm (DC)4.9 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7806111
EAN7320760886205
File Type Download
P1004.9 — Line Drawing PDF Download
