C5-DSDNN-00060-12
C5-DSDNN-00060-12
C5-DSDNN-00060-12

C5-DSDNN-00060-12

UGC DOR7809804
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$436.00 CAD - $436.00 CAD
$436.00 CAD
$436.00 CAD - $436.00 CAD
$436.00 CAD

Vendu en lots de : 1

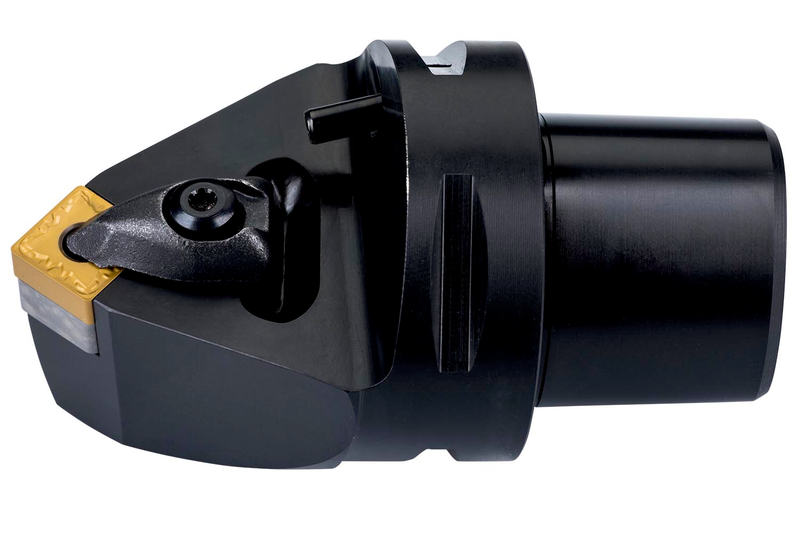

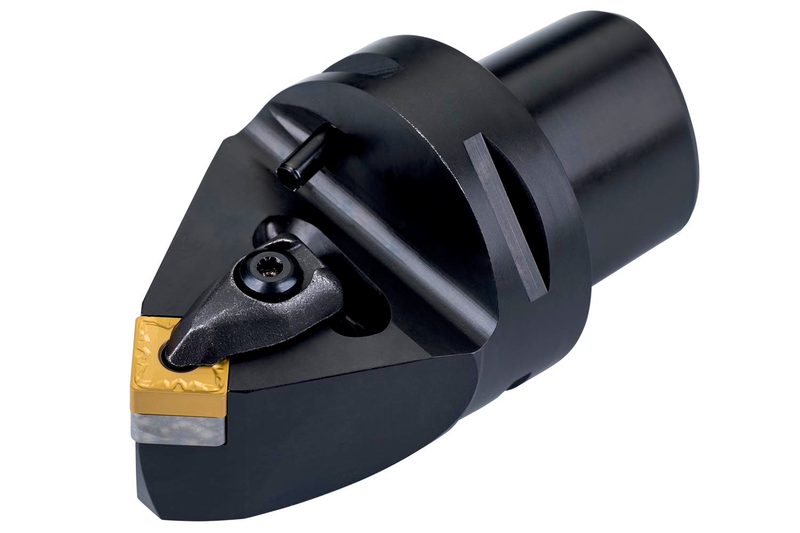

Outil de chariotage à double serrage pour plaquette négative carrée avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO SN... 1204...), main neutre, coupe latérale à 45° avec queue cylindrique selon ISO 26623 (accouplement à queue polygonale) taille C5, avec 60 mm de longueur en porte-à-faux pour le chanfreinage, le chariotage conique, le chariotage de reproduction unidirectionnel et multidirectionnel et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5-DSDNN-00060-12
Product Number7809804
Product FamilyC.-DSDNN EXT

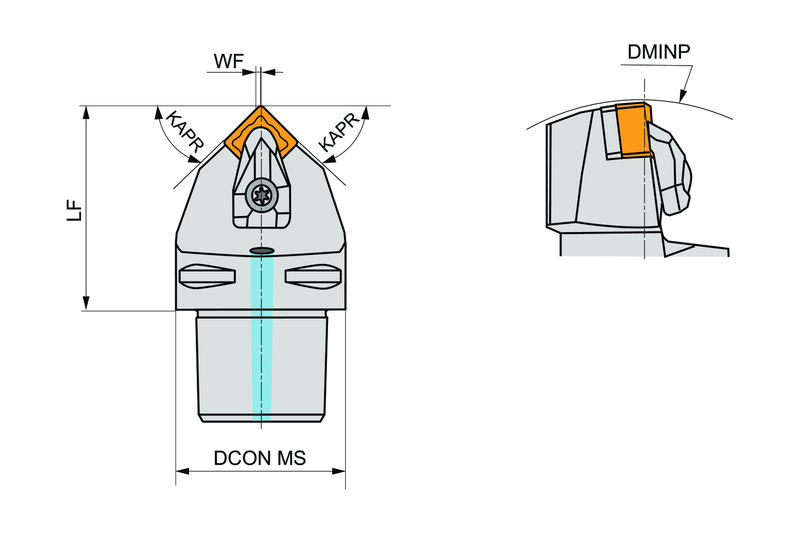

Dimensions
Functional Length — in (LF)2.362"
Functional Length — mm (LF)60.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7809804
EAN3603603682832
File Type Download
C5-DSDNN-00060-12 — Line Drawing PDF Download
