C6-DSDNN-00070-19
C6-DSDNN-00070-19
C6-DSDNN-00070-19

C6-DSDNN-00070-19

UGC DOR7809805
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$498.00 CAD - $498.00 CAD
$498.00 CAD
$498.00 CAD - $498.00 CAD
$498.00 CAD

Vendu en lots de : 1

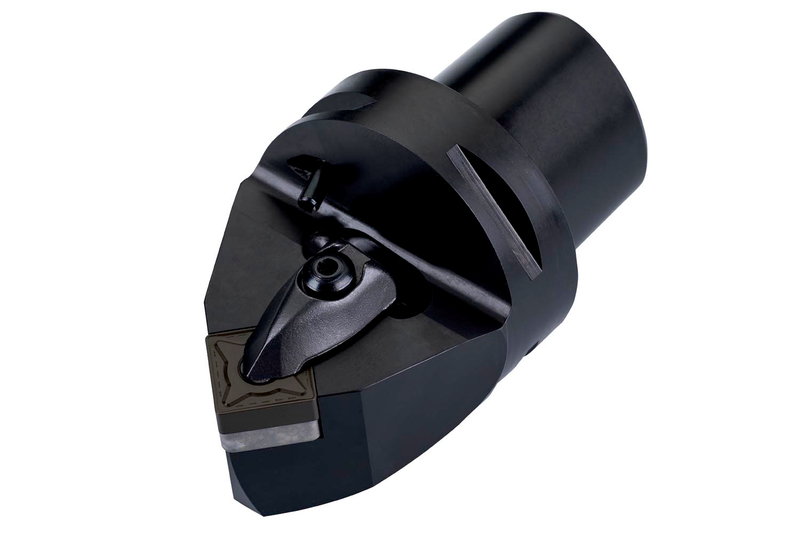

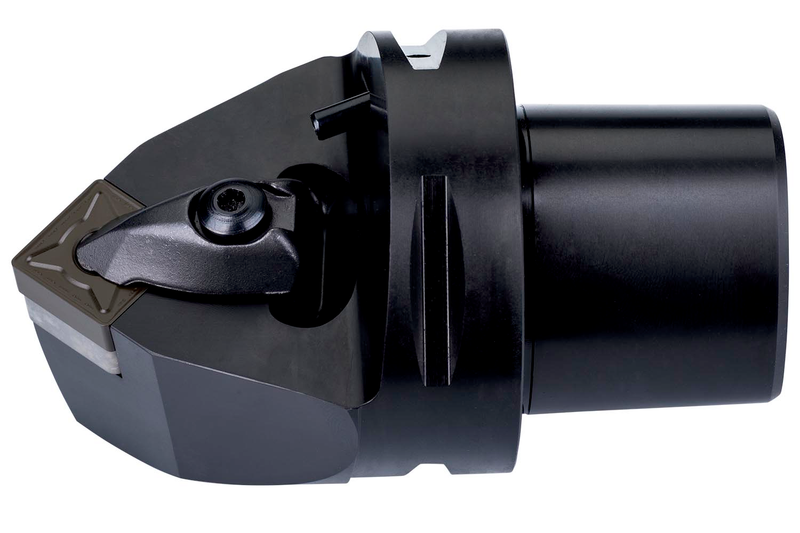

Outil de chariotage à double serrage pour plaquette carrée négative avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1906.. ), neutre, angle d'attaque de 45° avec attachement de type Polygon Shank Coupling de taille C6 selon ISO 26623, avec une longueur utile de 70 mm pour le chanfreinage, le chariotage conique, le chariotage de contour unilatéral et bilatéral et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6-DSDNN-00070-19
Product Number7809805
Product FamilyC.-RESEXT

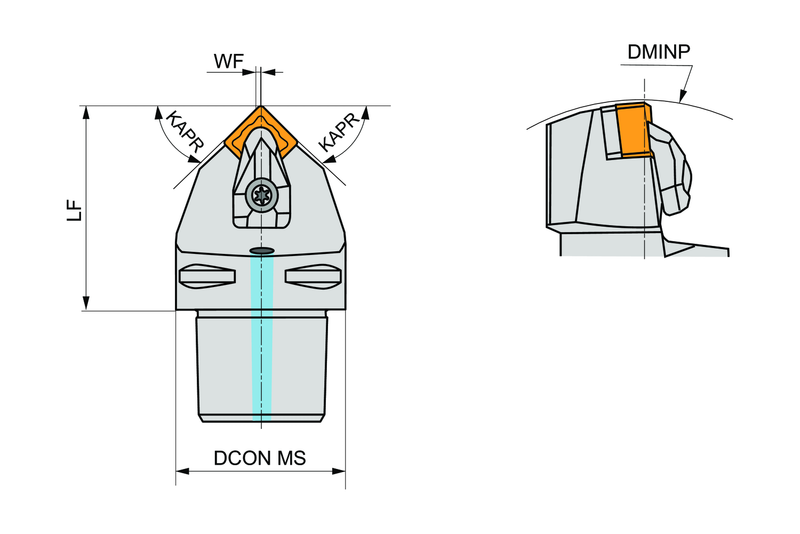

Dimensions
Functional Length — in (LF)2.756"
Functional Length — mm (LF)70.0 mm
Connection Dia. — in (DCON)2.48"
Connection Dia. — mm (DCON)63.0 mm
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7809805
EAN3603603682849
File Type Download
C6-DSDNN-00070-19 — Line Drawing PDF Download
