C5-SRDCN-00060-12A
C5-SRDCN-00060-12A
C5-SRDCN-00060-12A

C5-SRDCN-00060-12A

UGC DOR7809843
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$436.00 CAD - $436.00 CAD
$436.00 CAD
$436.00 CAD - $436.00 CAD
$436.00 CAD

Vendu en lots de : 1

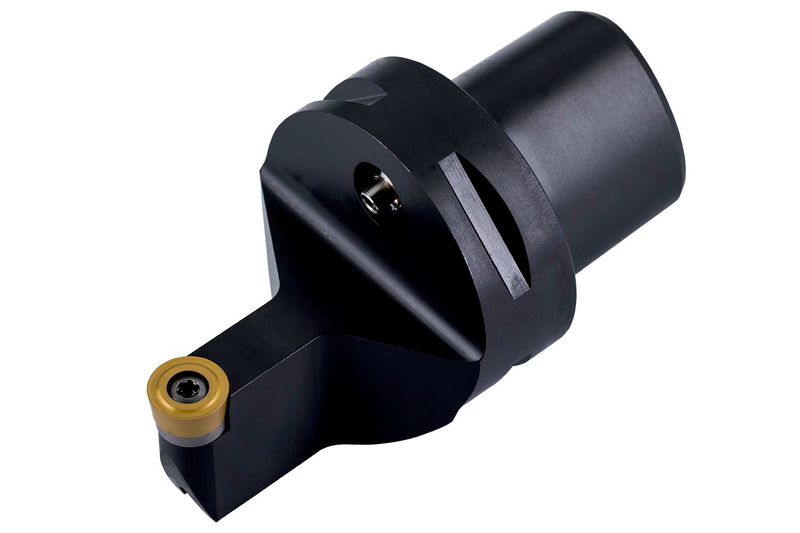

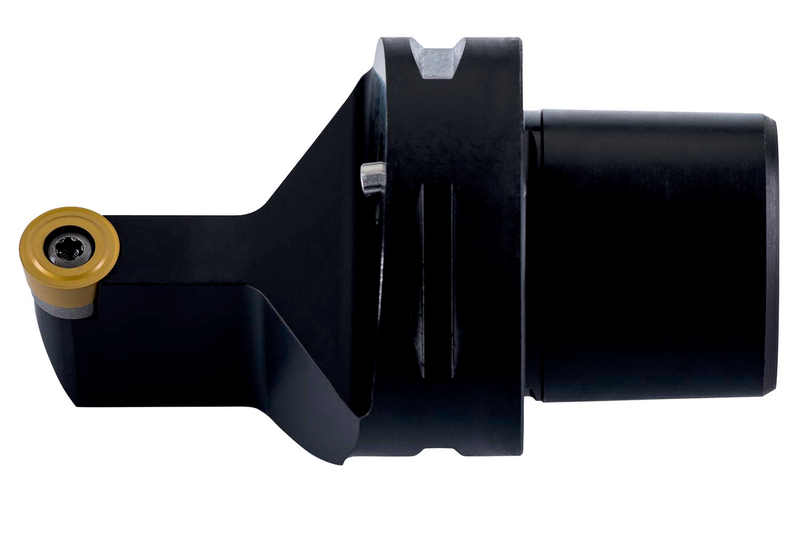

Outil de tournage à bride par vis pour le serrage d'un insert rond positif de 12 mm de diamètre, 4,76 mm d'épaisseur (désignation ISO RC.. 1204MO), neutre, de coupe latérale et frontale, à queue droite selon ISO 26623 (couplage polygonal) de taille C5, avec 60 mm de longueur en porte-à-faux pour le tournage conique, le tournage par copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5-SRDCN-00060-12A
Product Number7809843
Product FamilyC.-SRDCN EXT

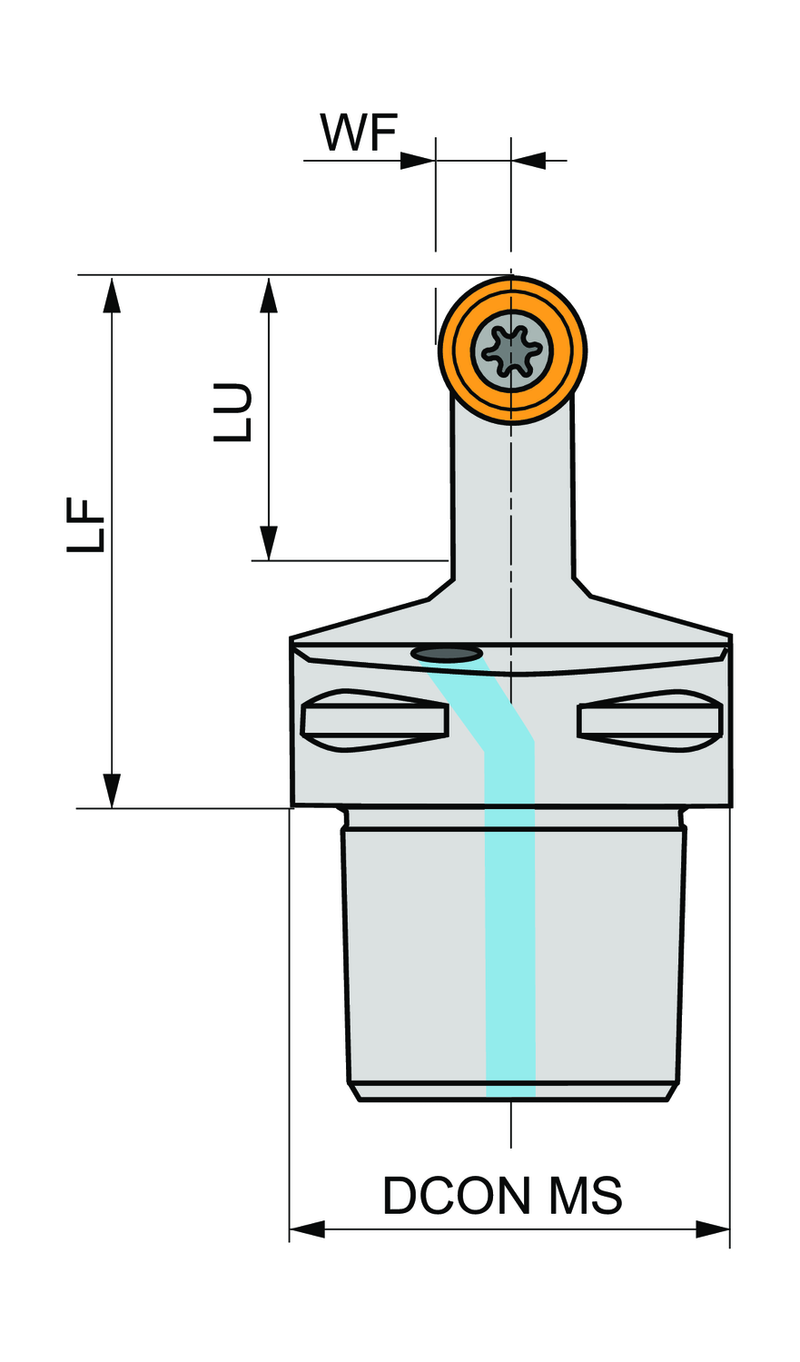

Dimensions
Usable Length — in (LU)1.102"
Usable Length — mm (LU)28.0 mm
Functional Length — in (LF)2.362"
Functional Length — mm (LF)60.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7809843
EAN3603603684225
File Type Download
C5-SRDCN-00060-12A — Line Drawing PDF Download
