C4-SVQBR-18090-16
C4-SVQBR-18090-16
C4-SVQBR-18090-16

C4-SVQBR-18090-16

UGC DOR7809897
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$661.00 CAD - $661.00 CAD
$661.00 CAD
$661.00 CAD - $661.00 CAD
$661.00 CAD

Vendu en lots de : 1

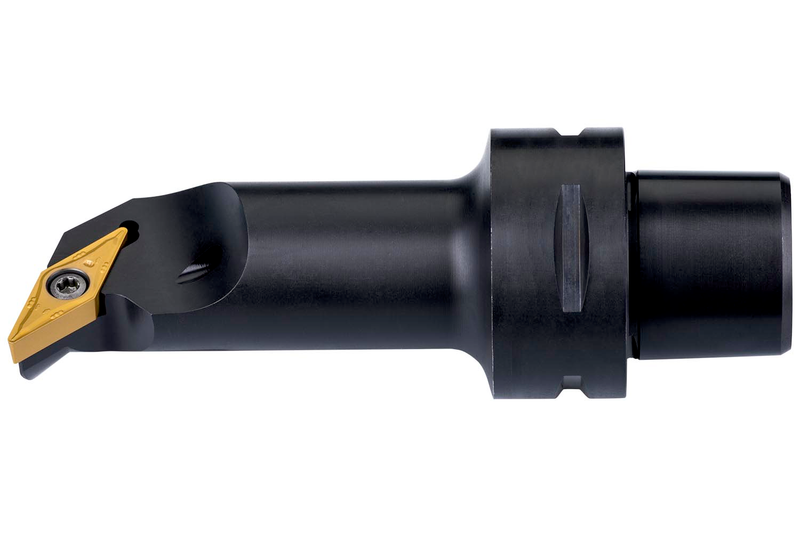

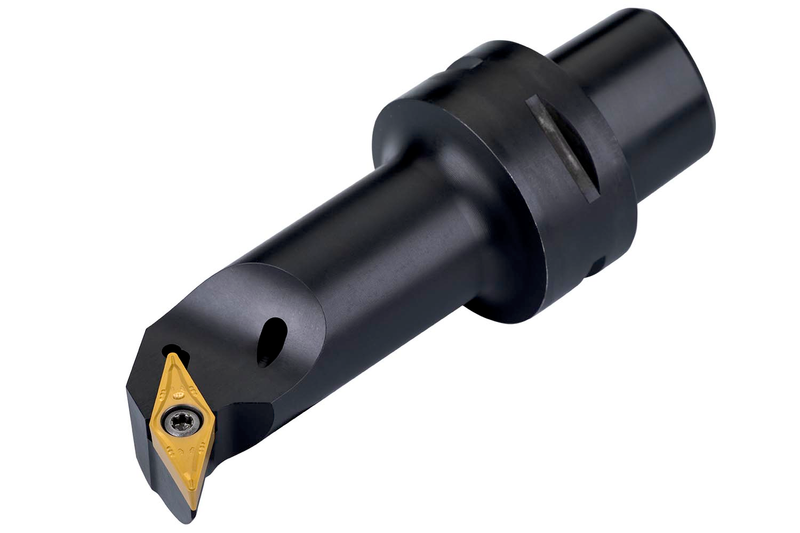

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec cercle inscrit de 9,525mm de diamètre, 4,76mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604..), coupe à droite 107°30' avec queue déportée selon ISO 26623 (accouplement à queue polygonale) taille C4, avec largeur fonctionnelle de 18mm et longueur en porte-à-faux de 90mm pour alésage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4-SVQBR-18090-16
Product Number7809897
Product FamilyC.-SVQB(RL) INT

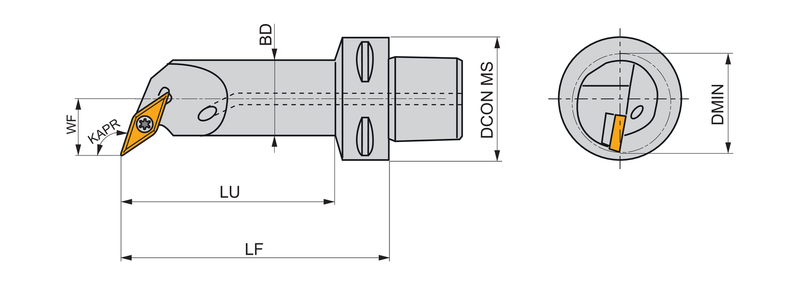

Dimensions
Usable Length — in (LU)2.677"
Usable Length — mm (LU)68.0 mm
Functional Length — in (LF)3.543"
Functional Length — mm (LF)90.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Min. Bore Dia. — in (DMIN)1.299"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7809897
EAN3603603684768
File Type Download
C4-SVQBR-18090-16 — Line Drawing PDF Download
