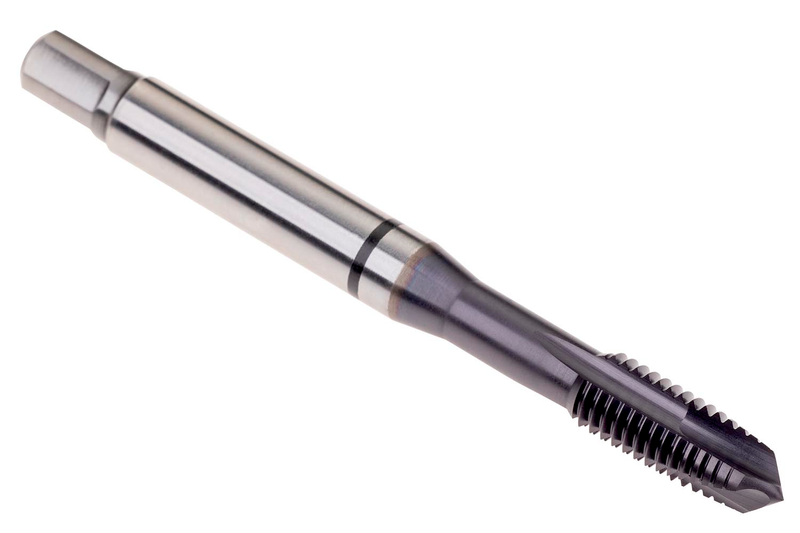

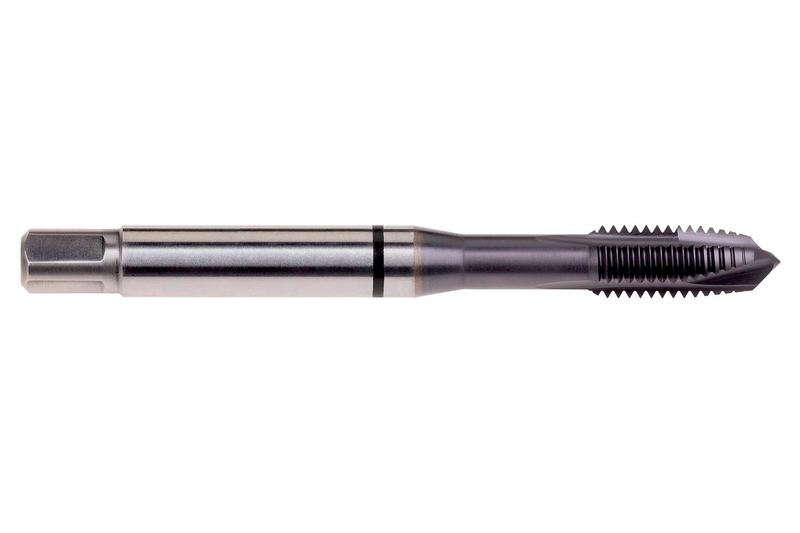

E8164-40
E8164-40
E8164-40

E8164-40

UGC DOR7812046
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.57 CAD - $28.57 CAD
$28.57 CAD
$28.57 CAD - $28.57 CAD
$28.57 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8164-40
GradeTiAlN/Top
Product Number7812046
Product FamilyE816
Dimensions
Overall Length — in (OAL)2.205"
Overall Length — mm (OAL)56.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.01 mm
Connection Dia. — in (DCON)0.141"
Connection Dia. — mm (DCON)3.58 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)UGR - Unifié Gros
Threads per Inch (TPI)40.0
Thread Pitch — mm (TP)40.0 mm
Thread Pitch — in (TP)1.5748"
Tool Information
Direction of ToolGauche
StandardDIN/ANSI
Reference Numbers
EDP Number7812046
EAN7320760887561
File Type Download
E8164-40 — Line Drawing PDF Download
