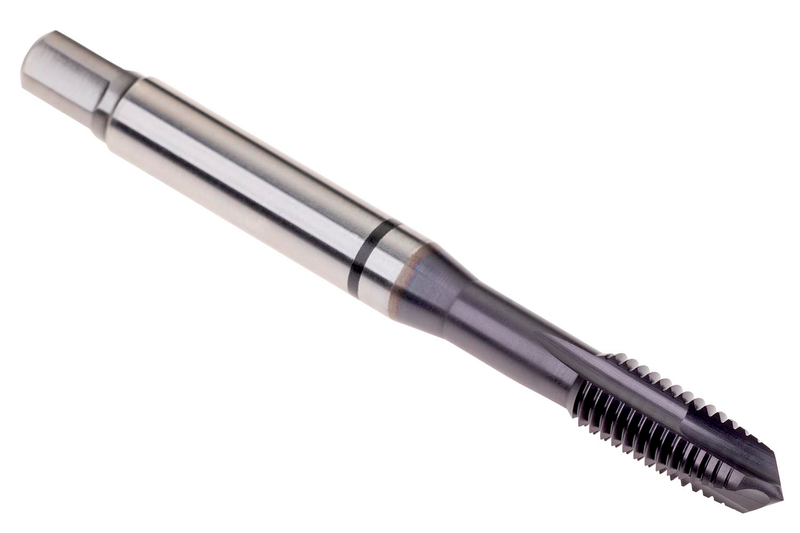

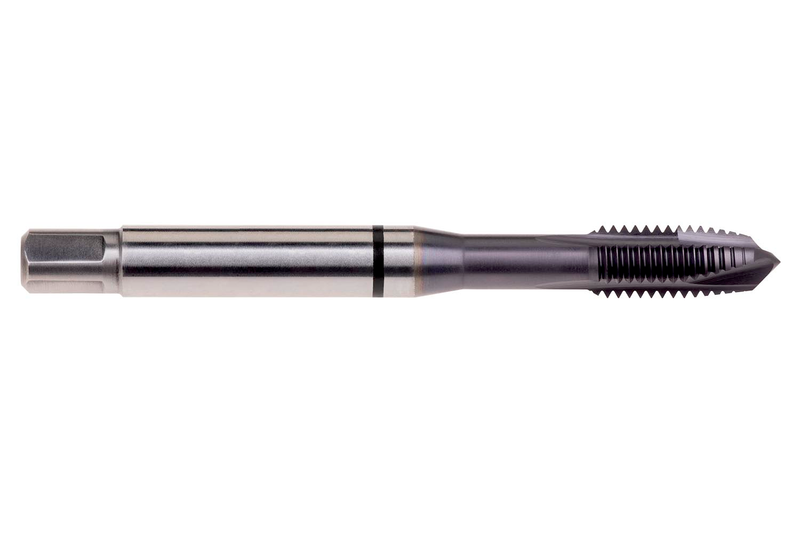

E8166-32
E8166-32
E8166-32

E8166-32

UGC DOR7812047
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.93 CAD - $23.93 CAD
$23.93 CAD
$23.93 CAD - $23.93 CAD
$23.93 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8166-32
GradeTiAlN/Sommet
Product Number7812047
Product FamilyE816
Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)62.99 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.866"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)UNC - Cohérent Unifié
Threads per Inch (TPI)32.0
Thread Pitch — mm (TP)32.0 mm
Thread Pitch — in (TP)1.2598"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812047
EAN7320760887578
File Type Download
E8166-32 — Line Drawing PDF Download
