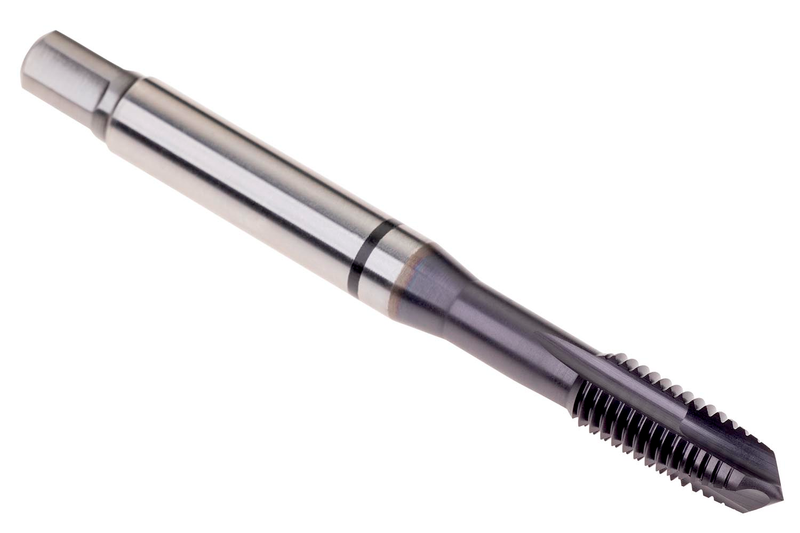

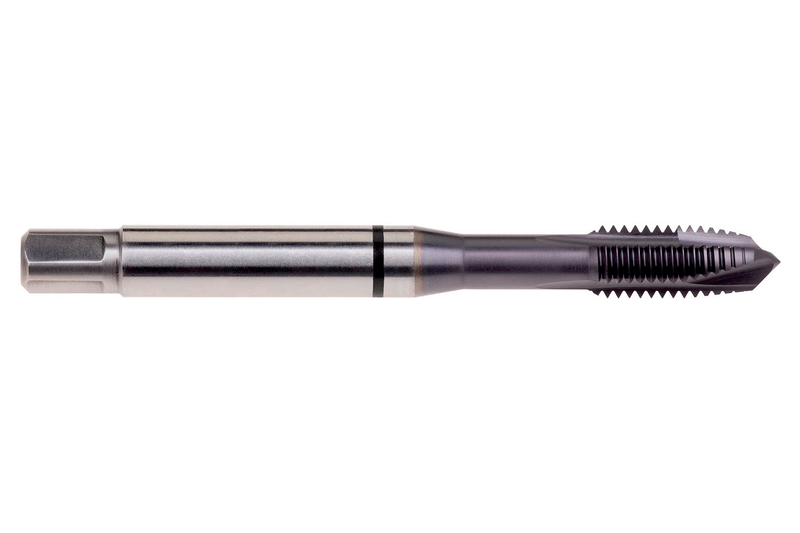

E81610-24
E81610-24
E81610-24

E81610-24

UGC DOR7812049
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.40 CAD - $24.40 CAD
$24.40 CAD
$24.40 CAD - $24.40 CAD
$24.40 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E81610-24
GradeTiAlN/Sommet
Product Number7812049
Product FamilyE816

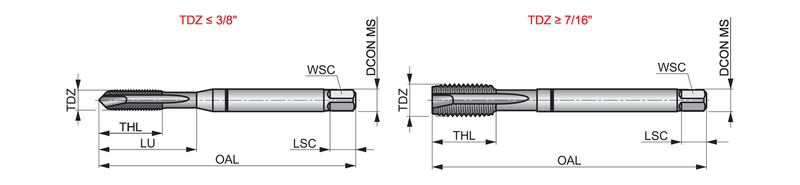

Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.024"
Usable Length — mm (LU)26.01 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)UNC - Gros unifié
Threads per Inch (TPI)24.0
Thread Pitch — mm (TP)24.0 mm
Thread Pitch — in (TP)0.9449"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812049
EAN7320760887592
File Type Download
E81610-24 — Line Drawing PDF Download
