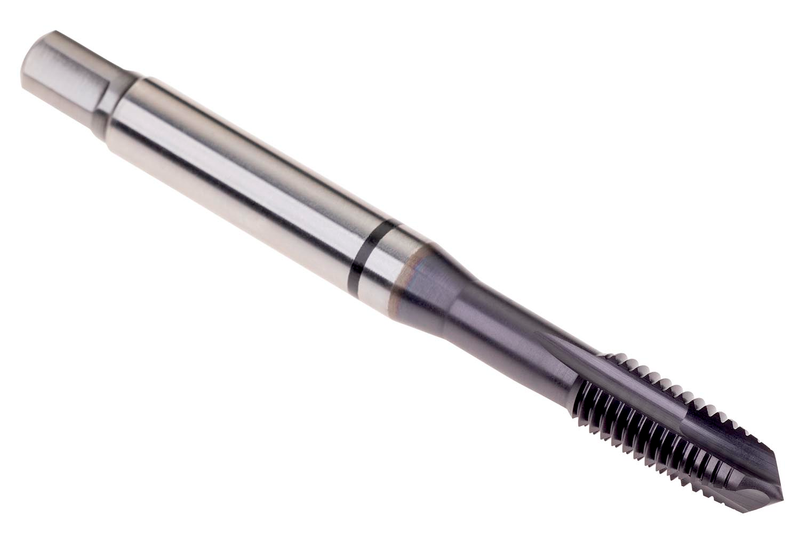

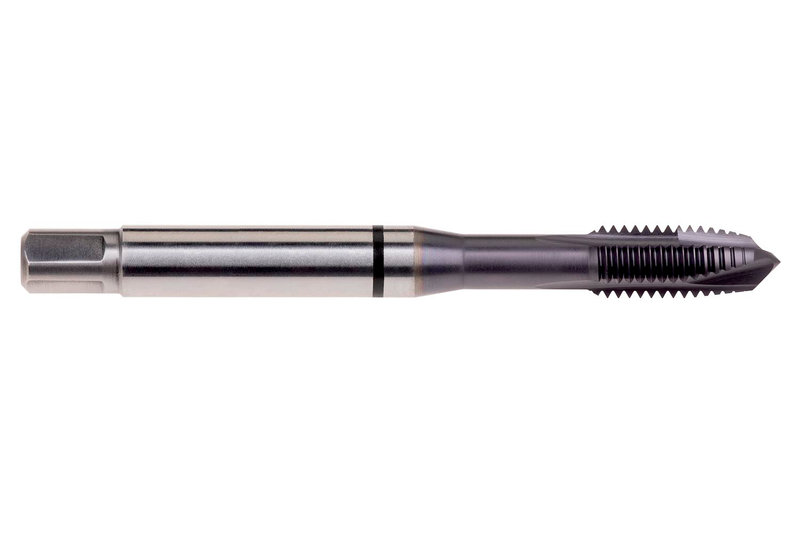

E8165/16
E8165/16
E8165/16

E8165/16

UGC DOR7812101
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.47 CAD - $34.47 CAD
$34.47 CAD
$34.47 CAD - $34.47 CAD
$34.47 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8165/16
GradeTiAlN/Top
Product Number7812101
Product FamilyE816
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)38.99 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Form (THFT)UNC - Ébauche unifiée
Threads per Inch (TPI)18.0
Thread Pitch — mm (TP)18.0 mm
Thread Pitch — in (TP)0.7087"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812101
EAN7320760887615
File Type Download
E8165/16 — Line Drawing PDF Download
