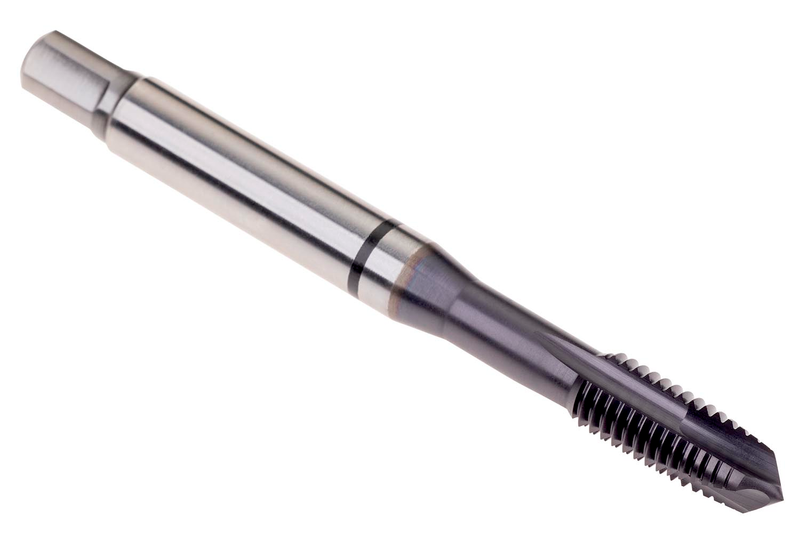

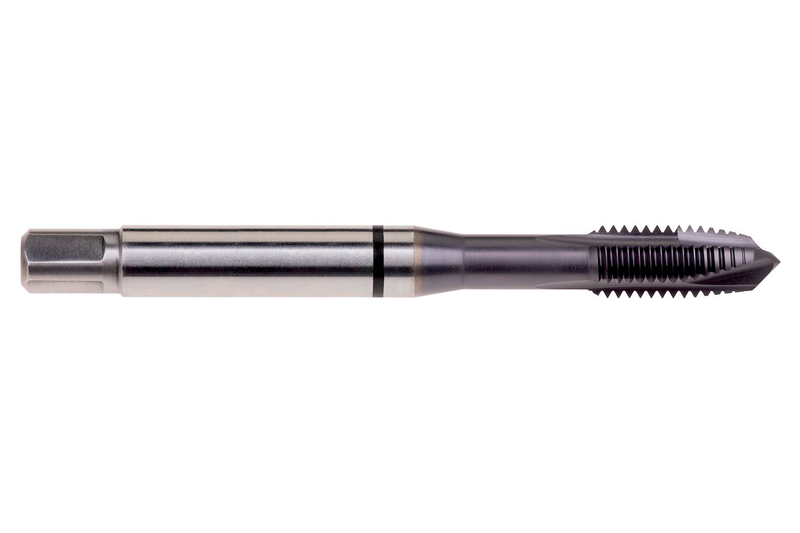

E817M12
E817M12
E817M12

E817M12

UGC DOR7812121
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.19 CAD - $65.19 CAD
$65.19 CAD
$65.19 CAD - $65.19 CAD
$65.19 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E817M12
GradeTiAlN/Top
Product Number7812121
Product FamilyE817
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812121
EAN7320760887813
File Type Download
E817M12 — Line Drawing PDF Download
