E8051/2
E8051/2
E8051/2

E8051/2

UGC DOR7812134
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.61 CAD - $75.61 CAD
$75.61 CAD
$75.61 CAD - $75.61 CAD
$75.61 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8051/2
GradeTiAlN/Sommet
Product Number7812134
Product FamilyE805

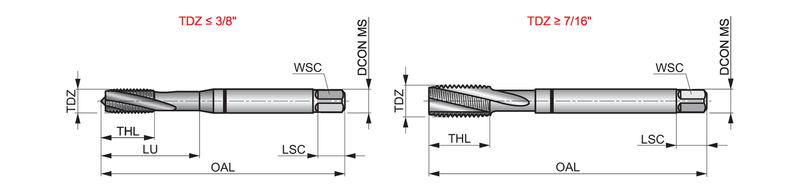

Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Form (THFT)UGC - Unifié Grossier
Threads per Inch (TPI)13.0
Thread Pitch — mm (TP)13.0 mm
Thread Pitch — in (TP)0.5118"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812134
EAN7320760887943
File Type Download
E8051/2 — Line Drawing PDF Download
