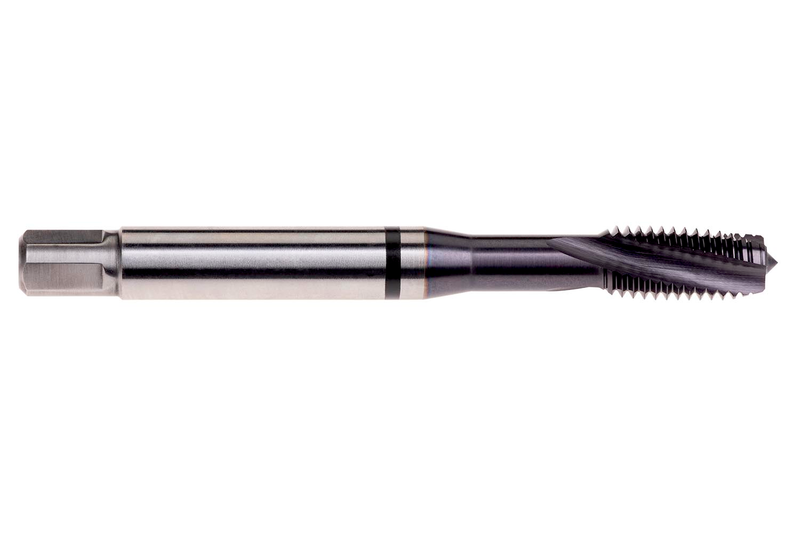

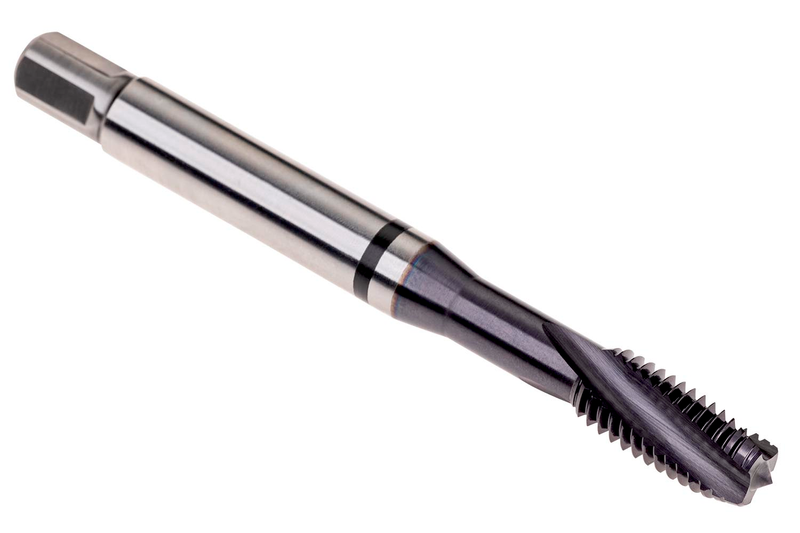

E806M3
E806M3
E806M3

E806M3

UGC DOR7812145
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.67 CAD - $52.67 CAD
$52.67 CAD
$52.67 CAD - $52.67 CAD
$52.67 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E806M3
GradeTiAlN/Top
Product Number7812145
Product FamilyE806

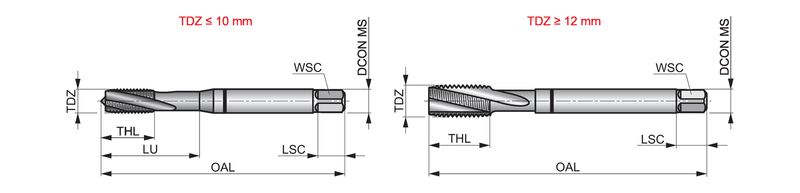

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8661"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812145
EAN7320760888056
File Type Download
E806M3 — Line Drawing PDF Download
