SPUB-63-C:6640
SPUB-63-C:6640

SPUB-63-C:6640

UGC DOR7817024
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.26 CAD - $23.26 CAD
$23.26 CAD
$23.26 CAD - $23.26 CAD
$23.26 CAD

Vendu en lots de : 10

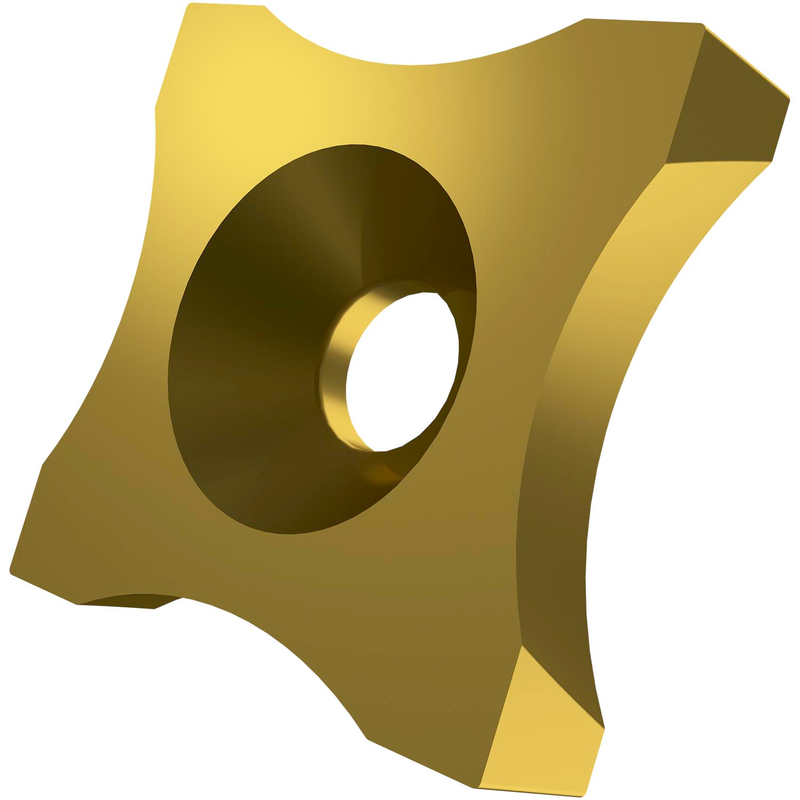

Plaquette de dressage à une seule face, carrée, d'une longueur d'arête de coupe principale de 19,05 mm, de 4,75 mm d'épaisseur et d'un rayon de travail de 15 mm pour des diamètres de tube de 22 à 28 mm, en carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)SPUB-63-C:6640
Product Name (ISO)SPUB 19-R15:6640
Grade6640
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number7817024
Product FamilySPUB 19-R
Insert Geometry
Insert DesignSPUB 19-R
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7817024
EAN3603603683679
File Type Download

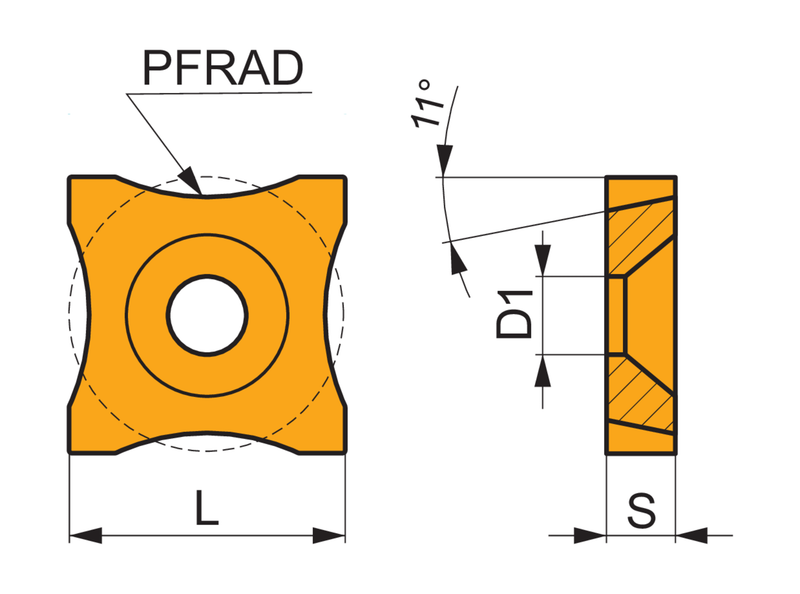

SPUB-63-C:6640 — Line Drawing PDF Download
