SPUB-63-F:6640
SPUB-63-F:6640

SPUB-63-F:6640

UGC DOR7817027
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.26 CAD - $23.26 CAD
$23.26 CAD
$23.26 CAD - $23.26 CAD
$23.26 CAD

Vendu en lots de : 10

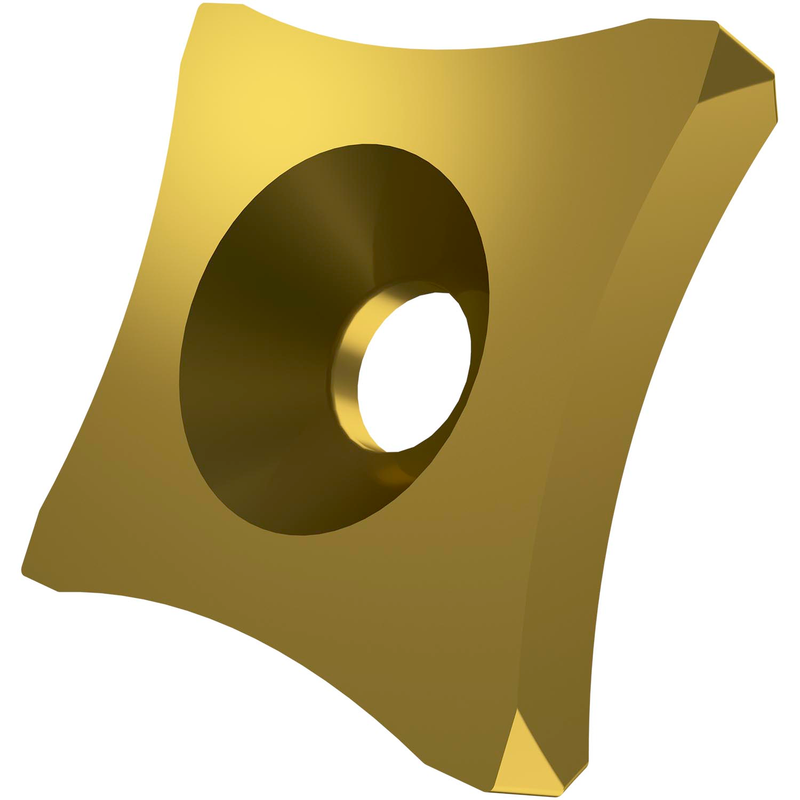

Plaquette d'ébavurage simple face, carrée avec une arête de coupe principale de 19,05 mm de long, 4,75 mm d'épaisseur et un rayon de travail de 30 mm pour des diamètres de tube de 45 à 57 mm, en carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)SPUB-63-F:6640
Product Name (ISO)SPUB 19-R30:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7817027
Product FamilySPUB 19-R

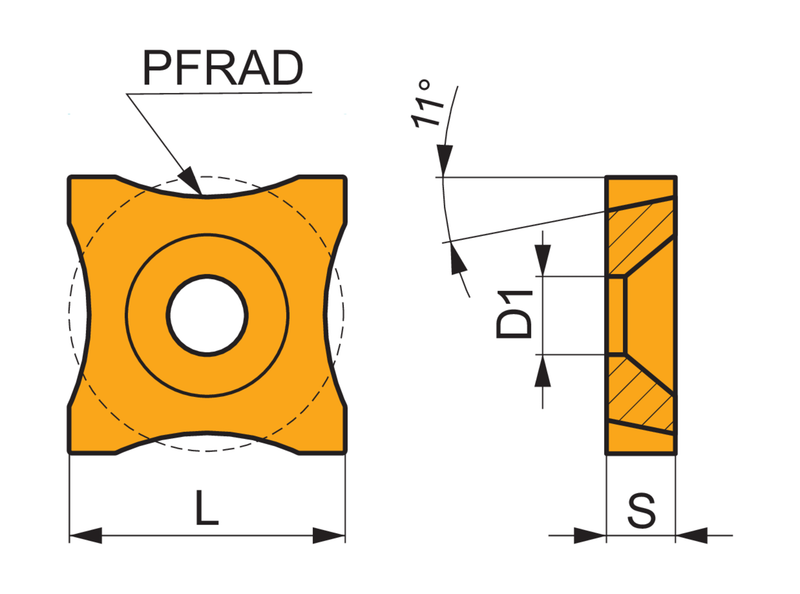

Insert Geometry
Insert DesignSPUB 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.75 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7817027
EAN3603603683709
File Type Download
SPUB-63-F:6640 — Line Drawing PDF Download
