SPUB-63-M:T9335
SPUB-63-M:T9335

SPUB-63-M:T9335

UGC DOR7817051
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.64 CAD - $24.64 CAD
$24.64 CAD
$24.64 CAD - $24.64 CAD
$24.64 CAD

Vendu en lots de : 10

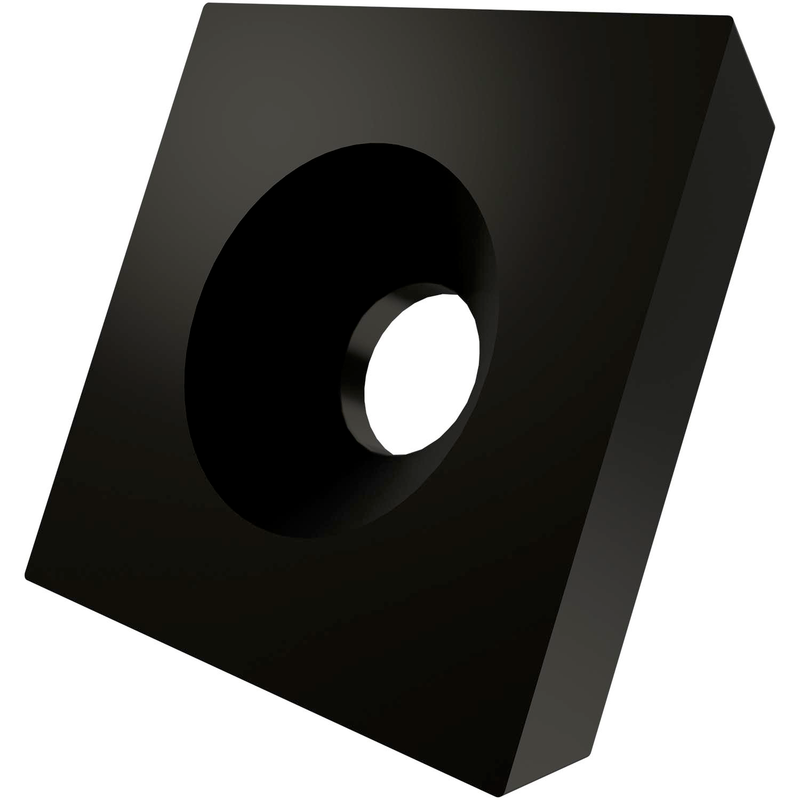

Plaquette de dressage simple face, carrée avec une arête de coupe principale de 19,05 mm de long, 4,75 mm d'épaisseur, en carbure WC-Co à gradient fonctionnel avec revêtement T9335 MT-CVD, dans les plages de nuances ISO P20-P45 et M15-M40, pour l'ébavurage extérieur de tubes carrés et rectangulaires en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)SPUB-63-M:T9335
Product Name (ISO)SPUB 19-R00:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7817051
Product FamilySPUB 19-R
Insert Geometry
Insert DesignSPUB 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.75 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7817051
EAN3603603683747
File Type Download

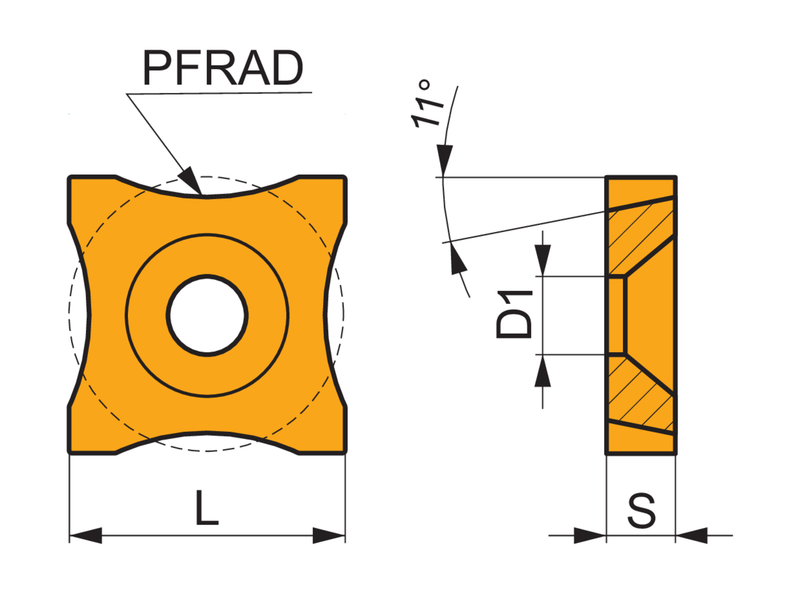

SPUB-63-M:T9335 — Line Drawing PDF Download
