SPUB-63-I:T9335
SPUB-63-I:T9335

SPUB-63-I:T9335

UGC DOR7817059
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.64 CAD - $24.64 CAD
$24.64 CAD
$24.64 CAD - $24.64 CAD
$24.64 CAD

Vendu en lots de : 10

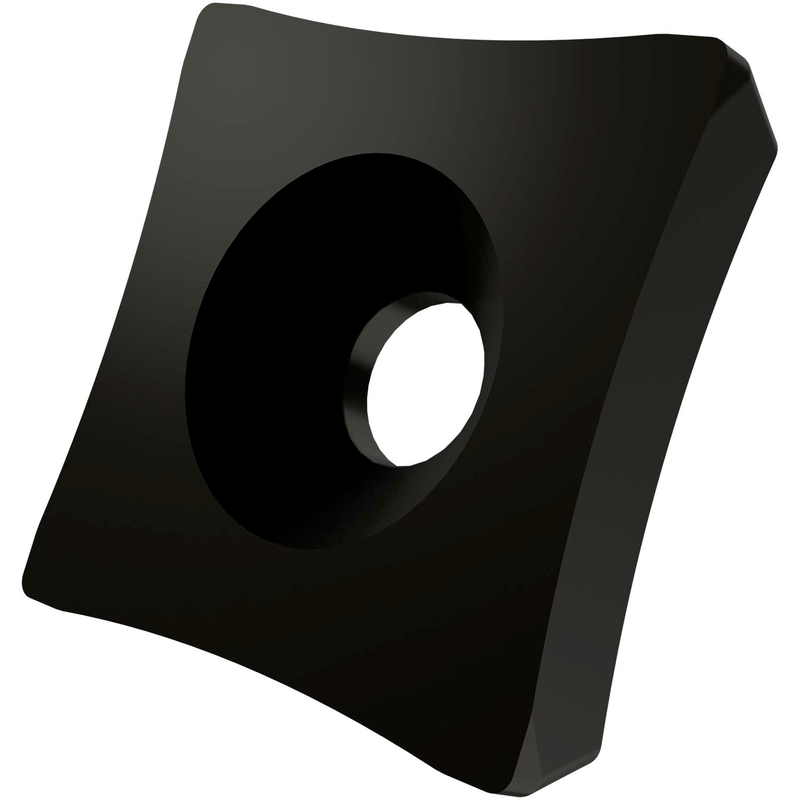

Plaquette d'ébavurage simple face, carrée, avec une arête de coupe principale de 19,05 mm de long, 4,75 mm d'épaisseur et un rayon de travail de 63 mm pour des diamètres de tube de 95 à 120 mm, en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD T9335, dans les plages de nuances ISO P20-P45 et M15-M40, pour l'ébavurage externe des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)SPUB-63-I:T9335
Product Name (ISO)SPUB 19-R63:T9335
GradeT9335
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7817059
Product FamilySPUB 19-R
Insert Geometry
Insert DesignSPUB 19-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7817059
EAN3603603683822
File Type Download

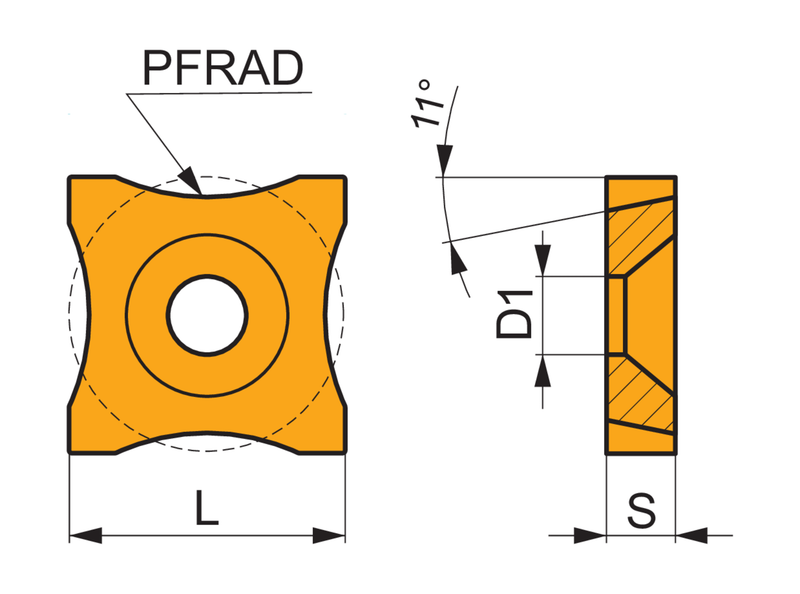

SPUB-63-I:T9335 — Line Drawing PDF Download
