SNMX 150708-R20:6640

SNMX 150708-R20:6640

UGC DOR7817103
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.50 CAD - $22.50 CAD
$22.50 CAD
$22.50 CAD - $22.50 CAD
$22.50 CAD

Vendu en lots de : 10

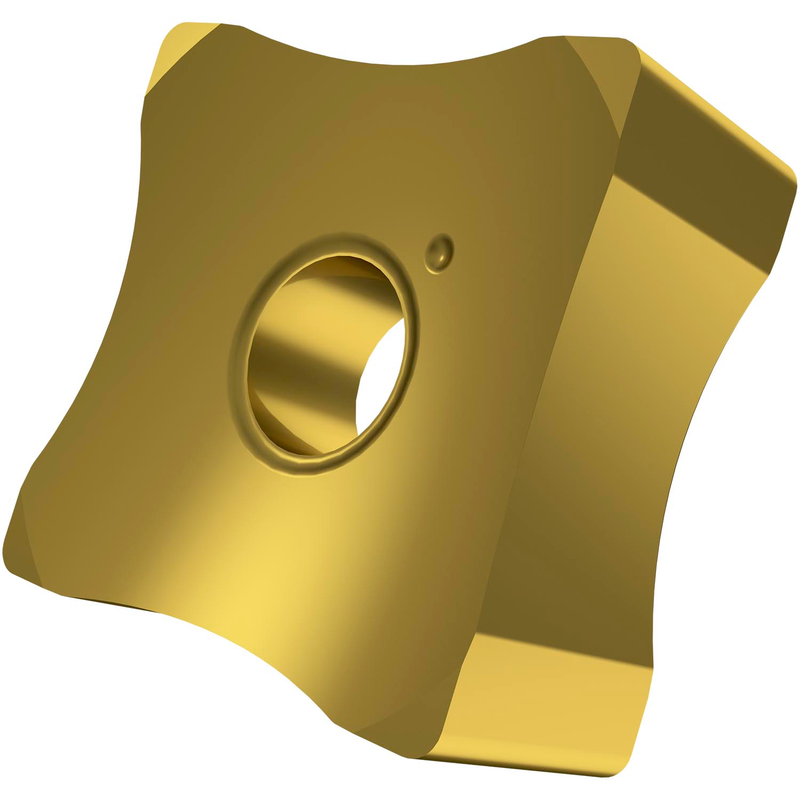

Plaquette de dressage double face, carrée, avec une longueur d'arête de coupe principale de 15,875 mm, une épaisseur de 7,75 mm et un rayon de travail de 20 mm pour des diamètres de tube de 29 à 36 mm, en carbure WC-Co revêtu 6640 MT-CVD dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 150708-R20:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7817103
Product FamilySNMX 1507-R
Insert Geometry
Insert DesignSNMX 1507-R
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.305"
Insert Thickness — mm (S)7.75 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7817103
EAN3603603683884
